Job Management Partner 1/Client Security Control Description, User's Guide and Operator's Guide

8.1 Transitions of windows used for client monitoring

An administrator can use the Client Security Management window in AIM to monitor client security levels.

The following figure shows the transitions of windows used for client monitoring.

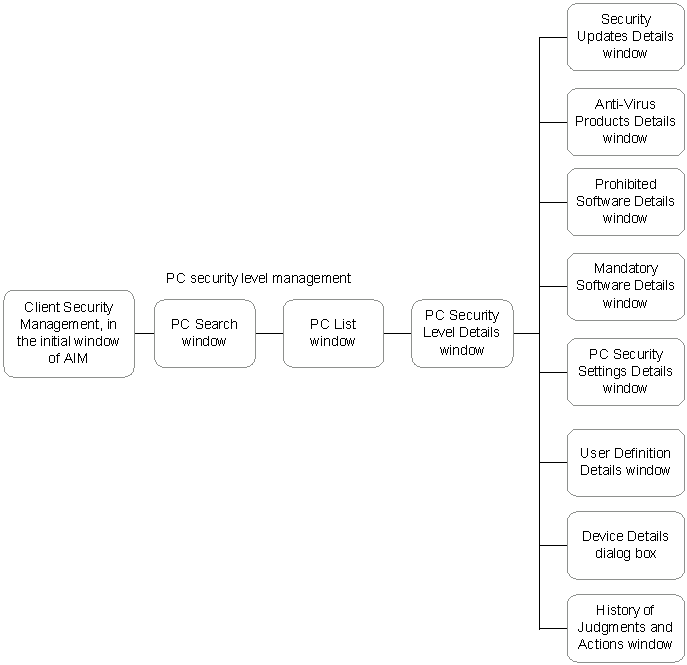

Figure 8-1 Transitions of windows used for client monitoring

To open the initial window of AIM, log in to AIM as a user with the CSC administrator or CSC user role.

To log in to AIM:

1. Open a Web browser, and go to the Login window.
   The Login window can be accessed by entering a URL from a Web browser. The URL of the Login window is http://host-name/jp1asset/login.htm.

2. Set each item.
   The items to set are as follows:


   User ID text box

   Enter the user ID of a CSC administrator or CSC user.

   Password text box

   Enter the password of the CSC administrator or CSC user.

3. Click the Login button.
   If user authentication is successful, the initial window of AIM is displayed as shown in the following figure.

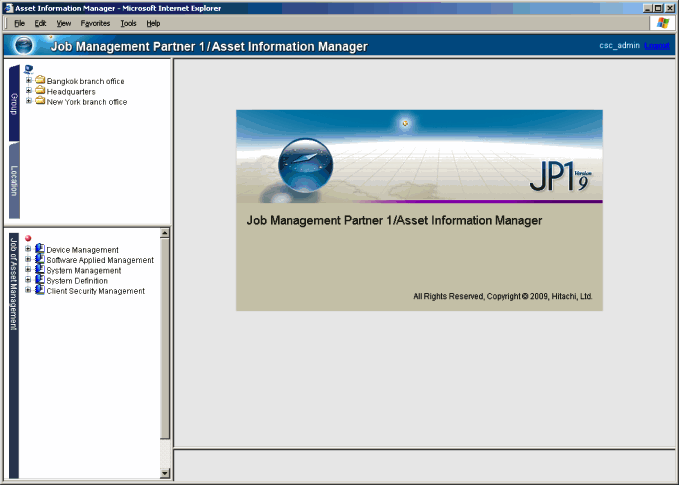

   Figure 8-2 Initial window of AIM
