Job Management Partner 1/Client Security Control Description, User's Guide and Operator's Guide

6.7.7 Defining firewall settings

To define firewall-related judgment items in the Edit Judgment Policy (Judgments for PC security settings) window:

1. In the Edit Judgment Policy (Judgments for PC security settings) window, select the Make this a judgment target check box.
   The items in the Edit Judgment Policy (Judgments for PC security settings) window are activated.

2. In the Edit Judgment Policy (Judgments for PC security settings) window, select Firewall and then click the Definition button, or double-click Firewall.

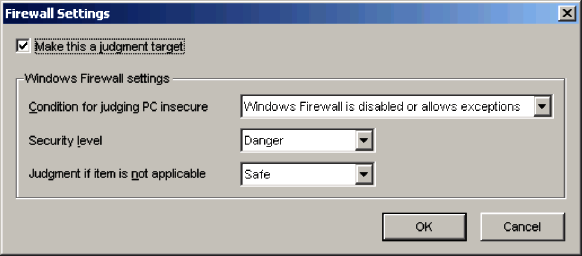

   The Firewall Settings dialog box appears.




3. Define the judgment conditions and security levels for firewall settings.
   The following table describes the setting items.


   Table 6-23 Setting items in the Firewall Settings dialog box

   No.	Window item name		Judgment conditions and description	Default
   1	Make this a judgment target		Select whether to make Windows Firewall settings a target for security level judgment.	Off
   2	Windows Firewall settings	Condition for judging PC insecure	From the pull-down menu, select the condition for judging the PC insecure. The following options are available: Windows Firewall is disabled Windows Firewall is disabled or allows exceptions	Windows Firewall is disabled
   3		Security level	Select a security level from the pull-down menu. The following options are available: Caution Warning Danger	Warning
   4		Judgment if item is not applicable	From the pull-down menu, select the desired behavior when the judgment item does not exist. The following options are available: Set security level Safe Not applicable Unknown	Not applicable

4. Click the OK button.
   The Firewall Settings dialog box closes, and you are returned to the Edit Judgment Policy (Judgments for PC security settings) window.
