6.3.5 Editing configuration files

Using IM Configuration Management, you can edit the configuration files for the JP1/Base profiles on a host.

The following describes the functionality for editing configuration files.

Organization of this subsection
(1) Editing configuration file contents
(2) Saving edited file contents
(3) Applying edited file contents

(1) Editing configuration file contents

In the Display/Edit Profiles window, you can edit the contents of a displayed configuration file.

The following configuration files can be edited in IM Configuration Management:

You can perform the following operations on these files in the Display/Edit Profiles window.

Copy text
You can copy text from a configuration file. Exclusive editing rights are not required.
In the file contents shown in the node display area, select the text that you want to copy and then perform either of the following:
  • Choose Edit and Copy.
  • Right-click and choose Copy.

Cut text
You can cut text from a configuration file. To do so, you must first obtain exclusive editing rights.
In the file contents shown in the node display area, select the text that you want to cut and then perform either of the following:
  • Choose Edit and Cut.
  • Right-click and choose Cut.

Paste text
You can paste copied or cut text into a configuration file. To do so, you must first obtain exclusive editing rights.
In the file contents shown in the node display area, select the position where you want to paste the text and then perform either of the following:
  • Choose Edit and Paste.
  • Right-click and choose Paste.

The changes you make while editing a configuration file are not checked. If you quit or forcibly terminate IM Configuration Management - View during editing, the changes will not be saved.

(2) Saving edited file contents

The contents of edited configuration files can be saved to the manager running IM Configuration Management.

Edited file contents are saved when you perform any of the following operations:

The figure below shows the flow of processing when saving the contents of edited configuration files with IM Configuration Management.

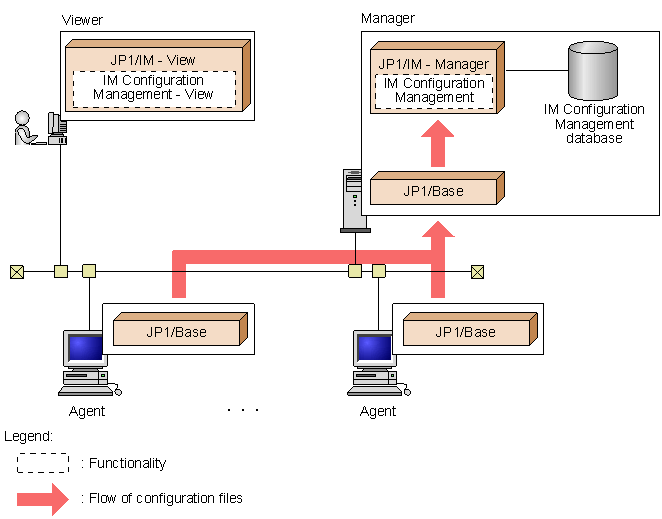

Figure 6-26 Saving edited file contents with IM Configuration Management

[Figure]

The following configuration files can be saved:

The edited file contents saved to the manager running IM Configuration Management cannot be forwarded to hosts.

Edited file contents saved to the manager will be overwritten when profiles are collected from the hosts.

(3) Applying edited file contents

You can apply the contents of edited configuration files to JP1/Base on the hosts.

The figure below shows the flow of processing when applying the contents of edited configuration files with IM Configuration Management.

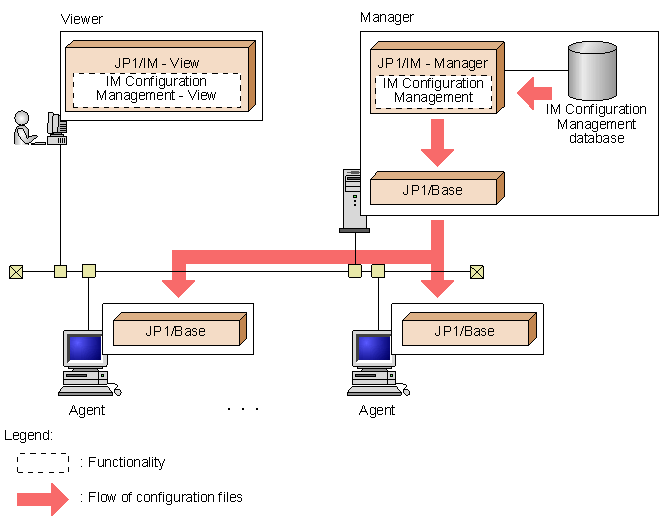

Figure 6-27 Applying edited file contents with IM Configuration Management

[Figure]

You can apply edited configuration files in either of two ways, as described below.

In JP1/Base version 9, if the processing fails, the configuration files on the agent are rolled back to their previous state.

Apply per host
You can apply edited configuration files to a particular host by performing either of the following:
  • In the node display area of the Display/Edit Profiles window, select the Apply check box next to Applied contents in the Saving/application area and then click the Execute button.
  • In the tree display area of the Display/Edit Profiles window, first make sure you have exclusive editing rights to the profiles. Then choose Operation, Save/Apply Profiles, and Apply by Reloading.
The following configuration files can be applied to a host:
  • Event forwarding setting file
  • Action definition file for log file trapping
  • Action definition file for event log trapping
  • Local action execution definition file

Apply to all hosts
You can apply edited configuration files to all hosts in the system hierarchy in one operation. To do so, on the Host List page or IM Configuration page of the IM Configuration Management window, choose Operation and then Batch Reflect Profiles.
The following configuration files can be applied in one operation with IM Configuration Management:
  • Event forwarding setting file
  • Action definition file for event log trapping
  • Local action execution definition file
In the Display/Edit Profiles window, you can check whether all the configuration files were successfully applied. If any file could not be applied or has Saved on the server status, the file is represented by an editing icon in the tree display area.
If there are no configuration files on the server, message KNAN22497-I appears and the file contents are not applied.
On the IM Configuration page of the IM Configuration Management window, you can check whether the configuration files were successfully applied to all the hosts. If any files could not be applied or have Saved on the server status, the affected host is represented by an error-status icon in the tree display area. To view further details, click the Basic Information button in the node display area.
