Job Management Partner 1/Integrated Management - Manager Overview and System Design Guide

6.3.4 Displaying profiles

Using IM Configuration Management, the profiles collected from hosts can be displayed in the Display/Edit Profiles window.

The figure below shows the flow of processing when displaying profiles with IM Configuration Management.

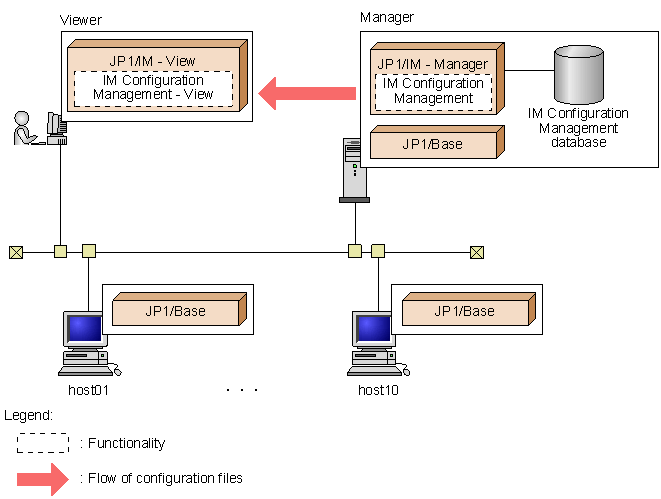

Figure 6-25 Displaying profiles with IM Configuration Management

The table below describes the profile information you can display according to whether the service is active or inactive.

Table 6-16 Profile information that can be displayed according to the service's activity status

Profile type Service activity status Display of valid configuration information Display of configuration file contents

Event Forwarding Running Y Y

Stopped N Y

Log File Trapping Running Y Y

Stopped N N

Event Log Trapping Running Y Y

Stopped N Y

Local Action Running Y Y

Inactive N Y

Stopped N Y

Legend:

Y: Can be displayed.

N: Cannot be displayed.

Profile type	Service activity status	Display of valid configuration information	Display of configuration file contents
Event Forwarding	Running	Y	Y
Stopped	N	Y
Log File Trapping	Running	Y	Y
Stopped	N	N
Event Log Trapping	Running	Y	Y
Stopped	N	Y
Local Action	Running	Y	Y
Inactive	N	Y
Stopped	N	Y
