3.4 Consolidated display of repeated events

In JP1/IM - View, JP1 events that are issued repeatedly can be displayed in summarized form. This function is called consolidated display of repeated events.

Using this function, you can prevent other important JP1 events from being overlooked when a large number of events with the same contents are issued in a short space of time.

The consolidated display function summarizes identical JP1 events received in succession by JP1/IM - View for display on the Monitor Events page or Severe Events page of the Event Console window. The function can be set separately by each user.

An event that summarizes identical JP1 events is known as a consolidation event. There are two types of consolidation events: an event in which repeated events are still being consolidated (event being consolidated) and an event in which the consolidation processing has been completed (consolidation completion event).

The first of identical JP1 events received by JP1/IM - View is known as a consolidation start event. The subsequently received identical JP1 events are called repeated events, and events that are not repeated, and therefore not consolidated, are known as non-consolidation events.

You can view repeated events in the Related Events (Summary) window, which opens from the Monitor Events page or Severe Events page of the Event Console window.

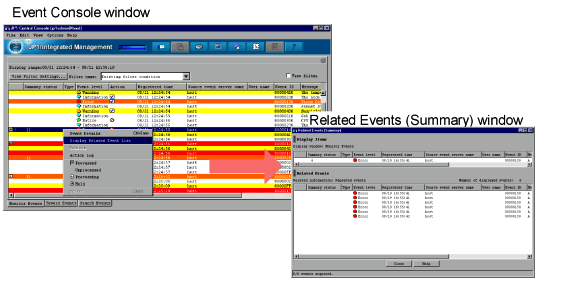

Figure 3-26 Example of viewing repeated events

Reference note

The Related Events window has two forms:

Related Events (Summary) window for viewing consolidation events

Related Events (Correlation) window for viewing correlation source events

Both windows can be displayed by selecting the required event in the Event Console window, and then choosing Display Related Event List from the View menu or from the pop-up menu. However, if you select a consolidated correlation event, the window that opens from the Event Console window will be the Related Events (Summary) window.

To view the correlation source events, you must then open the Related Events (Correlation) window from the Related Events (Summary) window.

Organization of this section

3.4.1 Consolidated display of JP1 events

3.4.2 Example of consolidation processing of repeated events
