Job Management Partner 1/Integrated Management - Manager Overview and System Design Guide

3.1.3 Internal control of JP1 events by JP1/IM - Manager

Internal processing in JP1/IM - Manager is based on information about JP1 events collected from the event database in JP1/Base and from the integrated monitoring database in JP1/IM - Manager.

Organization of this subsection

(1) JP1 event control when not using the integrated monitoring database

(2) JP1 event control when using the integrated monitoring database

(1) JP1 event control when not using the integrated monitoring database

If you do not use the integrated monitoring database, JP1 events are collected from the JP1/Base event database by the JP1/IM - Manager's event base service and event generation service.

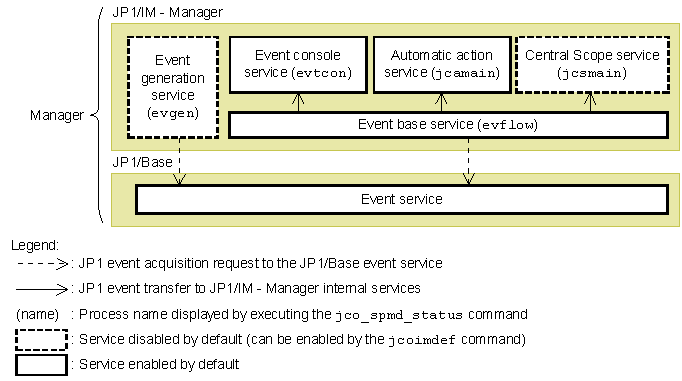

Figure 3-5 Internal control of JP1 events by JP1/IM - Manager

The JP1 events acquired by these two services are processed in various ways after they have been filtered by the event acquisition filter according to set conditions.

Processing of acquired JP1 events by the event base service

The event base service forwards JP1 events to the event console service, automatic action service, and Central Scope service. These three services execute processing (for example, event display in JP1/IM - View or an automated action) according to the received JP1 event.

Using the jcoimdef command, you can adjust the JP1 event acquisition and transfer processing performed by the event base service (for example, you can change the event acquisition start location, or the transfer timeout period and retry setting). For details, see jcoimdef in 1. Commands in the manual Job Management Partner 1/Integrated Management - Manager Command and Definition File Reference.

Processing of acquired JP1 events by the event generation service

This service performs correlation event issue based on issue definitions. For details, see 3.3 Issue of correlation events.

(2) JP1 event control when using the integrated monitoring database

When you use the integrated monitoring database, JP1 events are collected from the JP1/Base event database by the JP1/IM - Manager's event base service. The acquired JP1 events are stored in the integrated monitoring database.

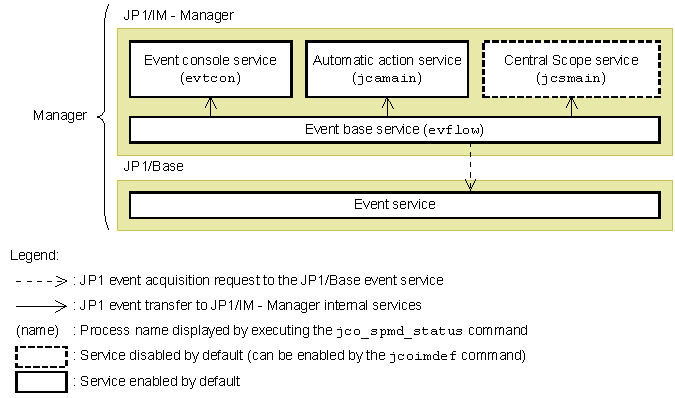

Figure 3-6 Internal control of JP1 events by JP1/IM - Manager

The JP1 events acquired by the event base service are processed in various ways after they have been filtered by the event acquisition filter according to set conditions.

Processing of acquired JP1 events by the event base service

The event base service performs correlation event issue based on issue definitions, and then forwards the JP1 events to the event console service, automatic action service, and Central Scope service. These three services execute processing (for example, event display in JP1/IM - View or an automated action) according to the received JP1 event.

Using the jcoimdef command, you can adjust the JP1 event acquisition and transfer processing performed by the event base service (for example, you can change the event acquisition start location, or the transfer timeout and retry setting). For details, see jcoimdef in 1. Commands in the manual Job Management Partner 1/Integrated Management - Manager Command and Definition File Reference.
