3.1.2 Flow of processing for JP1 event monitoring

The following describes how the JP1/IM and JP1/Base functionality are inter-linked in event monitoring, taking as an example the flow of processing from the time an agent issues a JP1 event until the event appears in the windows of a viewer.

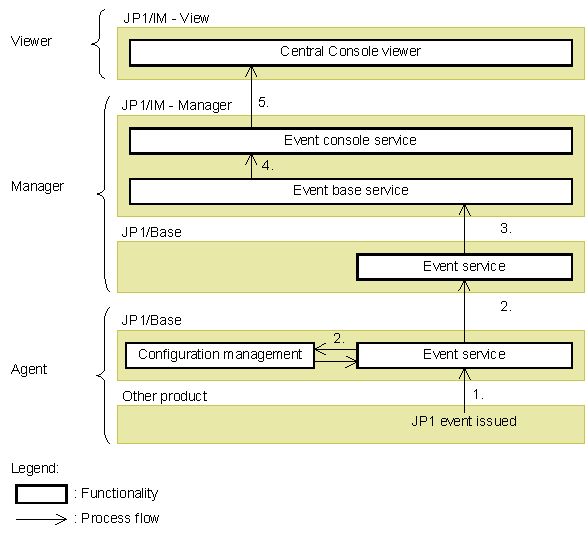

Figure 3-4 Flow of processing for JP1 event monitoring

[Figure]

The flow of processing is described below, following the numbers in the figure:

  1. The agent issues a JP1 event, which is registered with its event service.
  2. The registered JP1 event is forwarded to a higher-level host in accordance with the definitions in the configuration definition file, and is registered with that host's event service.
  3. Information about the registered JP1 event is acquired by the event base service.
  4. The event console service acquires the JP1 event information from the event base service.
  5. The JP1 event acquired by the event console service is monitored from the viewer.

For details about the event service, see 7.4.2 Managing JP1 events using JP1/Base. For details about configuration management, see 7.4.3 Managing the system hierarchy. For details about the event base service, see 3.1.3 Internal control of JP1 events by JP1/IM - Manager.
