4.1.1 Using the event display start-time specification function to specify the display time of events

To display events that are no longer displayed on the Monitor Events page of the Event Console window, you use the event display start-time specification function.

The event display start-time specification function can be used on the Monitor Events and Severe Events pages of the Event Console window.

Prerequisite condition:
  • The integrated monitoring database is configured.#
    #: The integrated monitoring database must have been configured at the time the events were acquired.

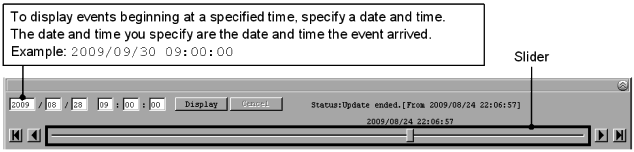

On the Monitor Events page, try displaying an event issued at 09:00:00 on February 25, 2009 when the earliest event currently displayed arrived at 10:00:00 on February 26, 2009.

[Figure]

[Figure]References:
  • See 5.1.9 Displaying events by specifying time in the Administration Guide.
  • See 2.2 Monitor Events page in the manual GUI Reference.

You can also use the slider to display previously-issued events.
