2.1.1 Using the view filter to specify conditions

You use the view filter to filter the events that are displayed. To set up the view filter, you use the Settings for View Filter window of Central Console.

To display the window:
To display the Settings for View Filter window, in the Monitor Events page of the Event Console window, click View Filter Settings.

Prerequisite conditions:
  • None

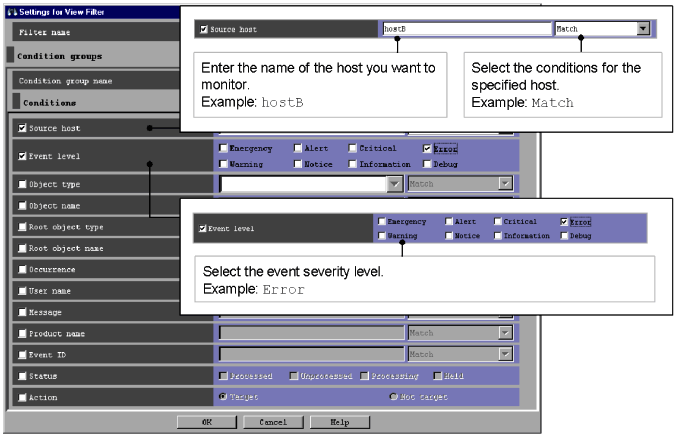

Let's specify settings to display in the events list only events of severity level Error issued by host B.

[Figure]

When you have finished specifying the settings, click the OK button in the Settings for View Filter window to register the filter conditions.

[Figure]References:
  • See 4.2.1 Settings for view filters in the Configuration Guide.
  • See 2.20 Settings for View Filter window in the manual GUI Reference.
