Job Management Partner 1/Integrated Management - Manager Quick Reference

1.1.1 Using IM Configuration Management to set up a system

To set up a system, you can use a component called IM Configuration Management. IM Configuration Management is one of the components provided by JP1/IM - Manager. It is used to centrally manage the hierarchical configuration of hosts comprising a system.

You use the IM Configuration Management window to set up the system hierarchy.

To display the window:

From the Start menu, choose Programs, JP1_Integrated Management - View, and then Configuration Management. This command sequence displays the Login window. The IM Configuration Management window is displayed once you log in at the Login window.

In the following subsections, you will set up the system described in the Basic system configuration section of the Preface.

Prerequisite conditions:

JP1/Base is installed on the managed hosts.

JP1/IM - Manager is installed on business server 1 (site manager), business server 2 (site manager), and the management server (integrated manager).

To define a system hierarchy:

Register the hosts.

Define the system hierarchy.

The following subsections explain the procedure for each of these steps.

Organization of this subsection

(1) Registering the hosts

(2) Defining the system hierarchy

(1) Registering the hosts

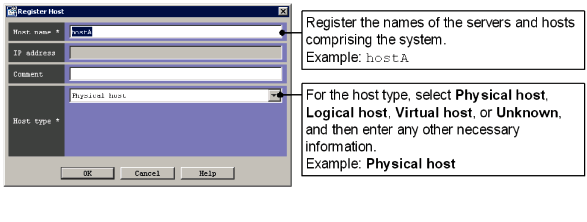

You register the hosts in the Register Host window.

To display the window:

To display the Register Host window, select the Host List tab, choose Edit, and then choose Register Host.

Let's register the hosts that comprise the system.

In a similar fashion, register the other servers and hosts according to the system hierarchy.

(2) Defining the system hierarchy

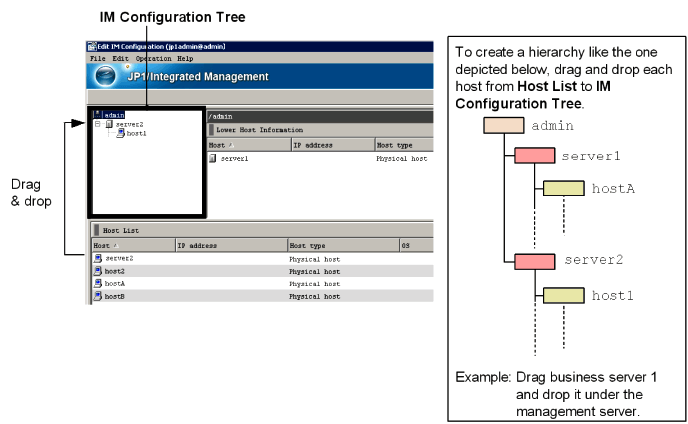

You define the system hierarchy in the Edit IM Configuration window.

To display the window:

To display the Edit IM Configuration window, in the IM Configuration Management window, choose Edit, and then Edit IM Configuration.

Let's configure the registered hosts according to the hierarchy.

When you have finished setting up the hierarchy, select the Acquire update right check box. Then, from the IM Configuration Management window, choose Operation, and then Apply IM Configuration to register the definitions.

References:

See 6. System Hierarchy Management Using IM Configuration Management in the Overview and System Design Guide.

See 1.9 Setting the system hierarchy (when IM Configuration Management is used) in the Configuration Guide.

See 1.19.2 Setting up IM Configuration Management - View in the Configuration Guide.

See 8. Managing the System Hierarchy using IM Configuration Management in the Administration Guide.

See 4. IM Configuration Management Window in the manual GUI Reference.
