Host Network Status (PI_HNI)

Function

This record stores performance data on a physical server's physical NIC over a unit of time. This record is a multi-instance record.

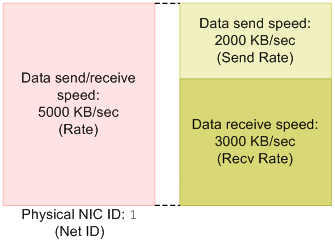

In this record, you can collect performance data such as data send/receive speed. The data send/receive speed can be divided into data receive speed and data send speed. The figure below shows an example of data that can be collected in this record.

Figure 5-4 Example of collected data

[Figure]

Note:
  • Information cannot be collected if an attempt to connect to the monitored physical server fails.
  • For Hyper-V, any special character contained in the disk name is converted to a different character and then stored in the Net ID field. The conversion rules are as follows:
    Before conversion After conversion
    / and \ -
    # _
    ( [
    ) ]

Default values and values that can be changed

Item Default value Can it be changed?
Collection Interval 60 Yes
Collection Offset 0 Yes
Log No Yes
LOGIF Blank Yes

ODBC key field

PI_HNI_NET_ID

Lifetime

None

Record size

Fields

PFM - View name
(PFM - Manager name)		 Explanation Summary Format Delta When not collected Unsup-ported
Record Type (INPUT_RECORD_TYPE) The record name. This is always HNI. COPY char (8) No -- --
Record Time (RECORD_TIME) The time when the record was created. COPY time_t No -- --
Interval (INTERVAL) Interval during which the information is collected.
[Units: seconds]		 COPY ulong No -- --
Net ID (NET_ID) Network ID. COPY string (257) No No --
Sampling Time (SAMPLING_TIME) Sampling time.
The time when the performance information is collected on the host machine. Displayed in the following format:
yyyy-mm-ddThh:mm[[Figure]hh:mm]#		 COPY string (32) No Blank --
Rate (RATE) Speed of transmission to and from the network by the host machine.
[Units: KBps]		 HILO double No VMware: 0
Hyper-V: 0		 --
Send Rate (SEND_RATE) Speed of sending to the network by the host machine.
[Units: KBps] 		HILO double No VMware: 0
Hyper-V: 0		 --
Recv Rate (RECV_RATE) Speed of receiving from the network by the host machine.
[Units: KBps] 		HILO double No VMware: 0
Hyper-V: 0		 --

#
The value used in [[Figure]hh:mm] varies depending on the time zone of the monitored host. For example, if the monitored virtual environment is operating according to JST, +09:00 is displayed. If the monitored virtual environment is operating according to UTC, Z is displayed.
