Host Memory Status (PI_HMI)

Function

This record stores performance data on a physical server's physical memory over a unit of time. This record is a single-instance record.

In this record, you can view performance data such as physical memory usage details, usage details by VMM, and swap usage. The figure below shows an example of data that can be collected in this record.

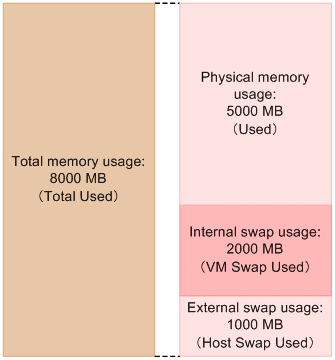

Figure 5-3 Example of collected data

[Figure]

Note:
Information cannot be collected if an attempt to connect to the monitored physical server fails.

Default values and values that can be changed

Item Default value Can it be changed?
Collection Interval 60 Yes
Collection Offset 0 Yes
Log No Yes
LOGIF Blank Yes

ODBC key field

None

Lifetime

None

Record size

Fields

PFM - View name
(PFM - Manager name)		 Explanation Summary Format Delta When not collected Unsup-ported
Record Type (INPUT_RECORD_TYPE) The record name. This is always HMI. COPY char (8) No -- --
Record Time (RECORD_TIME) The time when the record was created. COPY time_t No -- --
Interval (INTERVAL) Interval during which the information is collected.
[Units: seconds]		 COPY ulong No -- --
Size (SIZE) Memory resource size.
Total size of the physical memory on the host.
[Units: MB]		 COPY double No VMware: 0
Hyper-V: 0		 --
Sampling Time (SAMPLING_TIME) Sampling time.
The time when the performance information is collected on the host machine.
Displayed in the following format:
yyyy-mm-ddThh:mm[[Figure]hh:mm]#		 COPY string (32) No Blank --
Used (USED) Amount of used memory resources.
  • For VMware and Hyper-V
    Amount of memory resources used on the physical server.
[Units: MB]		 HILO double No VMware: 0
Hyper-V: 0		 --
VMM Used (VMM_USED) Amount of memory resources used by the VMM.
  • For VMware
    Amount of memory resources used by VMM.
[Units: MB]		 HILO double No VMware: 0 Hyper-V
VM Used (VM_USED) Amount of memory resources used by the VM.
  • For VMware
    Amount of memory resources used by the virtual machine.
[Units: MB]		 HILO double No VMware: 0 Hyper-V
Unused (UNUSED) Amount of unused memory resources.
Memory resources unused by the host.
[Units: MB]		 HILO double No VMware: 0
Hyper-V: 0		 --
VM Swap Used (VM_SWAP_USED) Amount of internal swap areas usage.
Amount of the internal swap area used in the virtual machines.
[Units: MB]		 HILO double No 0 Hyper-V
Host Swap Used (HOST_SWAP_USED) Amount of external swap area usage.
Total amount of the external swap area used in all virtual machines.
[Units: MB]		 HILO double No 0 Hyper-V
Total Used (TOTAL_USED) Total amount of used memory.
  • For VMware and Hyper-V
    Total amount of memory resources used by the physical server added to the amount of used internal and external swap areas.
[Units: MB]		 HILO double No VMware: 0
Hyper-V: 0		 --
Used % (USED_PERCENT) Usage rate of memory resources.
  • For VMware and Hyper-V
    Percentage of memory resources used at the physical server.
[Units: %]
Expression: "Used" field / "Size" field		 HILO double No VMware: 0
Hyper-V: 0		 --
VMM Used % (VMM_USED_PERCENT) Usage rate of memory resources by the VMM.
  • For VMware
    Percentage of memory resources used by the virtual machine monitor.
[Units: %]
Expression: "VMM Used" field / "Size" field		 HILO double No VMware: 0 Hyper-V
VM Used % (VM_USED_PERCENT) Usage rate of memory resources by the VM.
  • For VMware
    Percentage of memory resources used by the virtual machine.
[Units: %]
Expression: "VM Used" field / "Size" field		 HILO double No VMware: 0 Hyper-V
VM Swap Used % (VM_SWAP_USED_PERCENT) Usage rate of internal swap area.
Percentage of the internal swap area, of all virtual machines, that is used.
[Units: %]
Expression: "VM Swap Used" field / "Size" field		 HILO double No 0 Hyper-V
Host Swap Used % (HOST_SWAP_USED_PERCENT) Usage rate of external swap area.
Percentage of the external swap areas, of all virtual machines, that is used.
[Units: %]
Expression: "Host Swap Used" field / "Size" field		 HILO double No 0 Hyper-V
Total Used % (TOTAL_USED_PERCENT) Usage rate of all memory resources.
  • For VMware and Hyper-V
    Percentage of total memory resources used, including memory resources used by the physical server and the amount of internal and external swap areas that were used.
[Units: %]
"Total Used" field / "Size" field		 HILO double No VMware: 0
Hyper-V: 0		 --
Swap IO (SWAP_IO) Host swap I/O.
Amount of operations, for swap resources, that were generated by the host machine.
[Units: MB]		 HILO double No 0 Hyper-V
Swap In IO (SWAP_IN_IO) Host swap-in I/O.
Amount of swap-in operations, for swap resources, that were generated by the host machine.
[Units: MB]		 HILO double No 0 Hyper-V
Swap Out IO (SWAP_OUT_IO) Host swap-out I/O.
Amount of swap-out operations, for swap resources, that were generated by the host machine.
[Units: MB]		 HILO double No 0 Hyper-V

#
The value used in [[Figure]hh:mm] varies depending on the time zone of the monitored host. For example, if the monitored virtual environment is operating according to JST, +09:00 is displayed. If the monitored virtual environment is operating according to UTC, Z is displayed.
