34.1.3 Expanding a data DB area (adding data DB area files)

The adbmodarea command enables you to expand one data DB area (add DB area files to a data DB area).

The following figure provides an overview of expanding a data DB area.

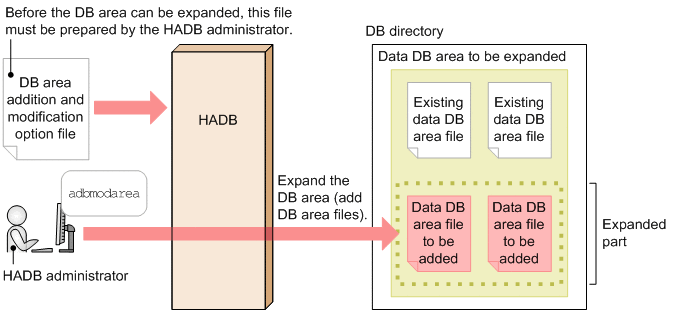

Figure 34‒5: Expanding a data DB area (adding data DB area files)

The following explains the file used to expand a data DB area (add data DB area files):

• DB area addition and modification option file

  This file is used to specify the options that configure an execution environment for the adbmodarea command. Specify information about the data DB area that is to be expanded.

You can allocate block special files as the DB area files to be added. In this case, symbolic links to the block special files are created under the DB directory.

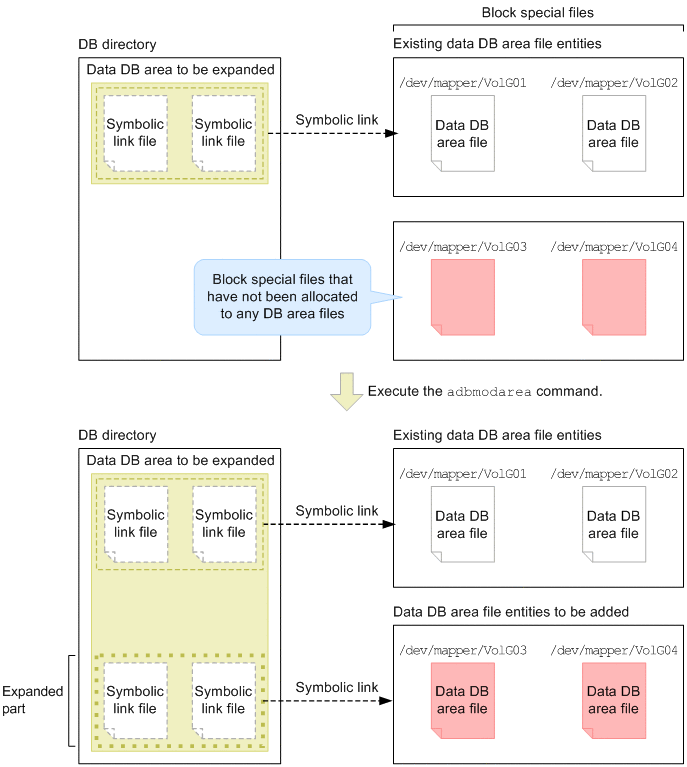

Figure 34‒6: Allocating block special files as DB area files (expanding data DB areas)

Important

A block special file that has already been allocated to an existing DB area file cannot be allocated as a new DB area file.

For details about the DB area addition and modification options that are specified to allocate block special files, see the adbexpandarea operand in (b) Command format in (2) Explanation of specification format in 34.2.2 Format of DB area addition and modification options.
