Hitachi Advanced Database Command Reference


13.8.3 Examples of outputting the usage information of archived chunks

The following are examples of outputting the usage information of archived chunks. Note that the actual output results are shown here in parts due to their horizontal length.

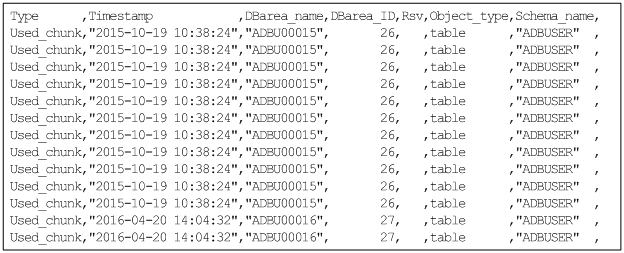

Figure 13‒22: Examples of outputting the usage information of archived chunks (columns 1-7)

[Figure]

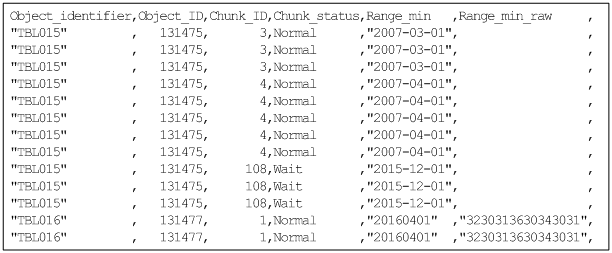

Figure 13‒23: Examples of outputting the usage information of archived chunks (columns 8-13)

[Figure]

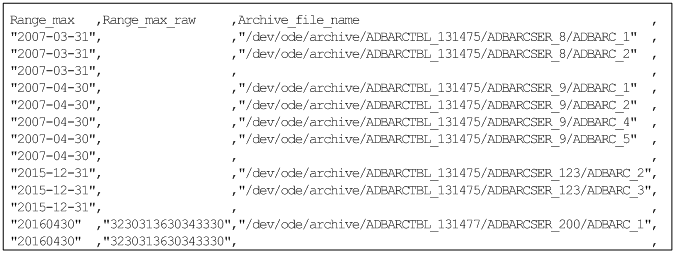

Figure 13‒24: Examples of outputting the usage information of archived chunks (columns 14-16)

[Figure]

Figure 13‒25: Examples of outputting the usage information of archived chunks (columns 17-18)

[Figure]
