13.7.3 Output example of usage information for DB areas, tables, and indexes

The following shows output examples of usage information for DB areas, tables, and indexes. Because the rows in the actual output results are wide, they are shown in sections in this manual. Also, some rows are omitted here.

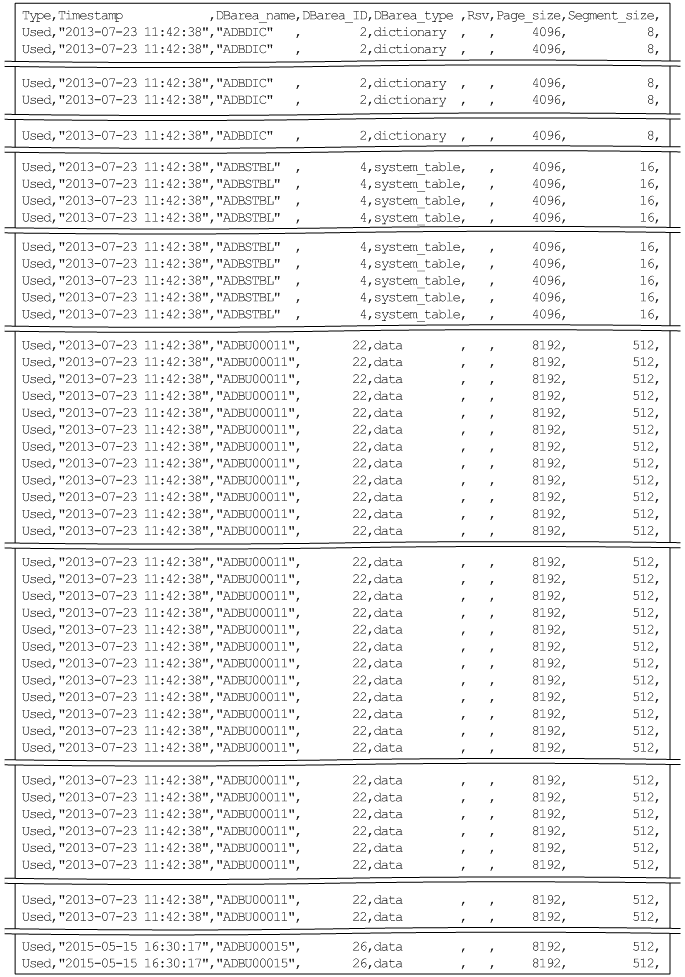

Figure 13‒17: Output example of usage information for DB areas, tables, and indexes (columns 1 through 8)

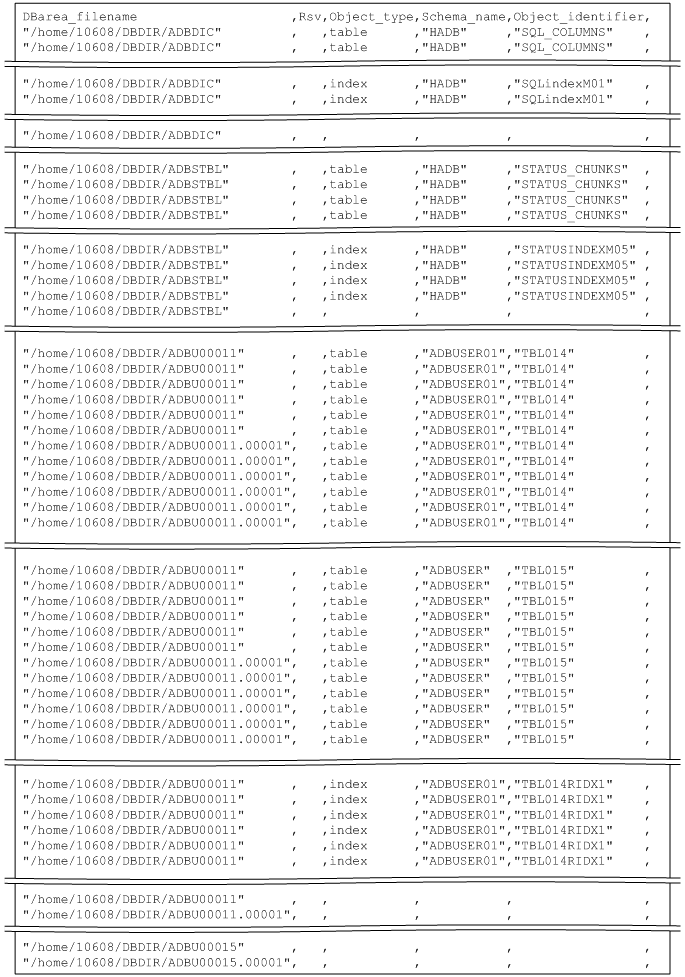

Figure 13‒18: Output example of usage information for DB areas, tables, and indexes (columns 9 through 13)

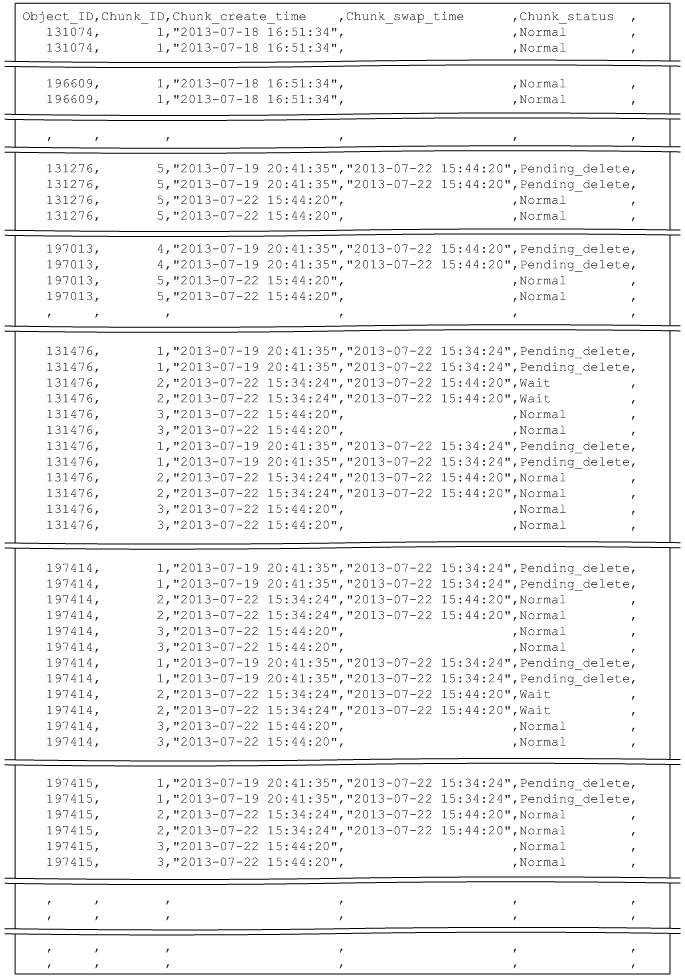

Figure 13‒19: Output example of usage information for DB areas, tables, and indexes (columns 14 through 18)

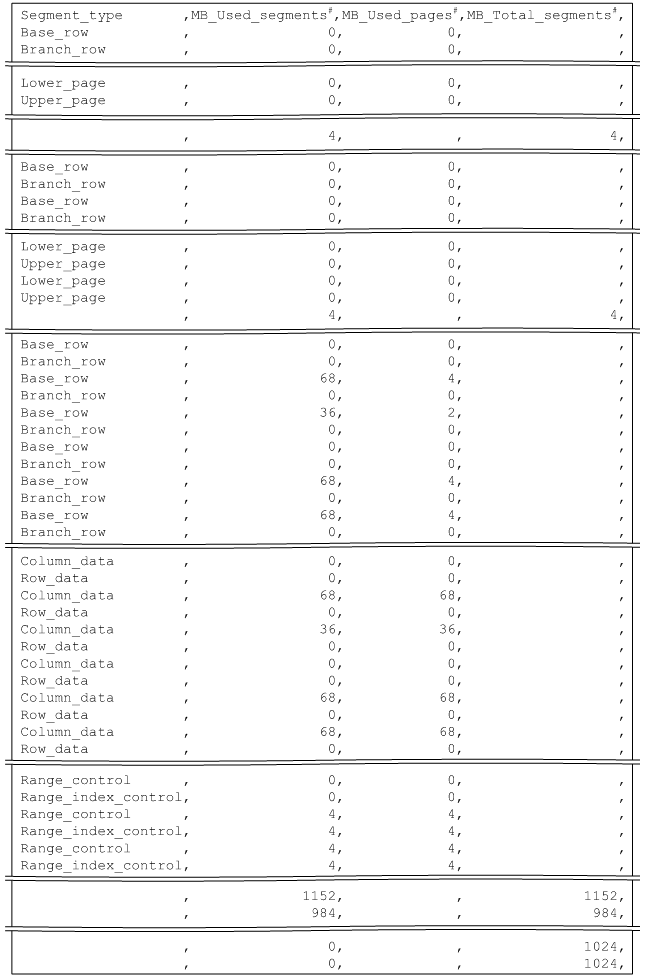

Figure 13‒20: Output example of usage information for DB areas, tables, and indexes (columns 19 through 22)

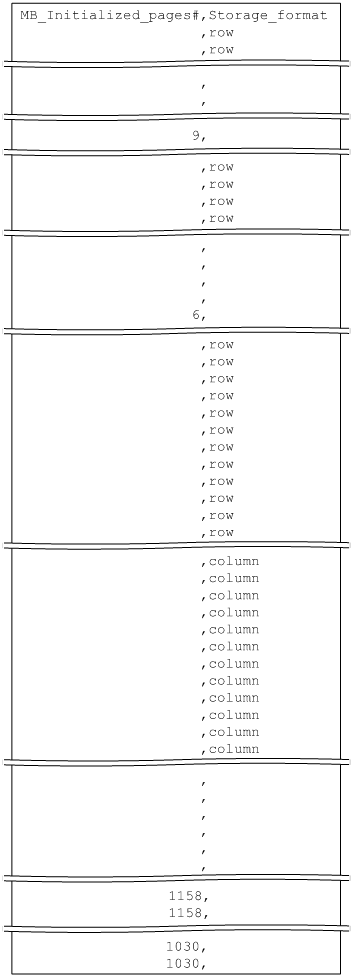

Figure 13‒21: Output example of usage information for DB areas, tables, and indexes (columns 23 through 24)

#

The display units for usage amount output items and the column titles are changed based on the specified -S option. For details about the -S option, see (3) Explanation of options in 13.2.1 Explanation of the specification format and options (outputting summary information or usage information).
