Managing events by JP1/IM

JP1/IM optimizes (filters) the JP1 events managed by JP1/Base and centrally manages the events that occur in the system as JP1 events. By sending HiRDB events to JP1/Base, you can have JP1/IM manage them in the same manner as with other products' events. The user can check events using windows provided by JP1/IM. The following figure gives an overview of event monitoring by JP1/IM.

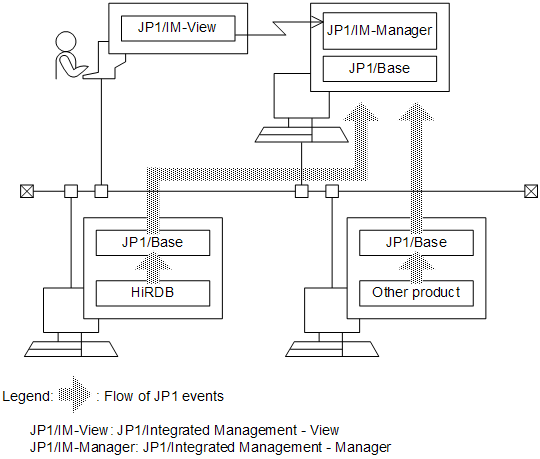

Figure 7-7 Overview of event monitoring by JP1/IM

[Figure]

For an overview of event monitoring by JP1/Integrated Management, see the applicable manual for the JP1 version being used.

For JP1 Version 9
Job Management Partner 1/Integrated Management - Manager Overview and System Design Guide
For JP1 Version 8
Job Management Partner 1/Integrated Management - Manager System Configuration and User's Guide
For JP1 Version 7i
Job Management Partner 1/Integrated Manager - Console

Organization of this subsection: (1) Preparations for displaying HiRDB-specific extended attributes by JP1/IM

For JP1/IM to display HiRDB-specific extended attributes, you must copy the event attribute definition file provided by HiRDB to the following directory:

For JP1/Integrated Management - Manager (JP1 Version 7i or earlier JP1/Integrated Manager - Central Console): installation-directory/conf/console/attribute

The event attribute definition file is stored in the sample directory under the HiRDB installation directory. The following table shows the names of event attribute definition files for each OS.

Table 7-7 Name of the event attribute definition file for each OS

OS	Name of the event attribute definition file
HP-UX	HITACHI_HIRDB_HP_attr_ja.conf
AIX	HITACHI_HIRDB_AIX_attr_ja.conf
Solaris	HITACHI_HIRDB_SOL_attr_ja.conf
Linux	HITACHI_HIRDB_LIN_attr_ja.conf

For a multi-HiRDB, copy the most recent version of the event attribute definition file in the running HiRDBs.
