This section explains the environment setup procedure up to the point immediately before OpenTP1 startup. The following figure shows the environment setup procedure for OpenTP1 for Windows.

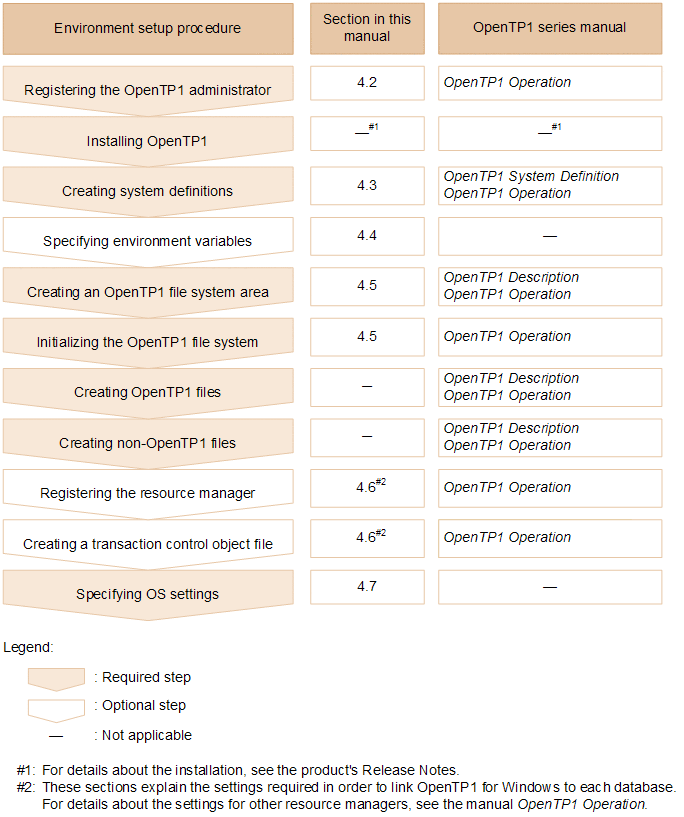

Figure 4-1 Environment setup procedure for OpenTP1 for Windows

The OpenTP1 administrator sets up an environment for OpenTP1 for Windows. For the details of setting up an environment, see the appropriate sections in this chapter and the OpenTP1 series manuals, as indicated in the figure.

For details about the settings for using multiOpenTP1, see 4.8 MultiOpenTP1 settings.

Note

If you use functions provided by other products, such as TP1/Message Control or TP1/Message Queue, you must perform the procedures specific to each product in addition to the procedures indicated in the figure. These specific procedures are common to OpenTP1 for Windows and OpenTP1 for UNIX. For details, see the overview of the environment setup procedure in the manual OpenTP1 Version 7 Operation.

Reference note

You can use a graphical user interface (GUI) to perform the minimum environment setup for OpenTP1 for Windows (such as creating system definitions) that is needed in order to use OpenTP1. For details about the OpenTP1 environment GUI setup procedure, see 6.7 GUI provided by OpenTP1 for Windows.
