OpenTP1 Version 7 Operation
xarevtr (Display XAR event trace information)
Format
xarevtr [-a] [-f XAR-event-trace-information-file]
|
Function
The xarevtr command edits the specified XAR event trace information file and displays the information.
Options
-a
Displays the information in detailed format. When this option is omitted, lines 6 through 10 and line 12 are omitted.
-f XAR-event-trace-information-file
Specifies the XAR event trace file to display on the console. When this option is omitted, of the files $DCDIR/spool/dcxarinf/trace/xarevtr1 and $DCDIR/spool/dcxarinf/trace/xarevtr2, the file that has been updated more recently is assumed as the file to be edited.

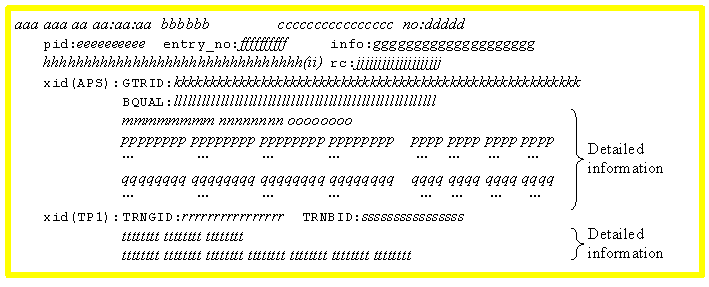

Output format
- aa...aa
- Date and time (ctime format)
- bb...bb
- Microseconds (decimal)
- cc...cc
- Application server name (character string, 1-16 characters)
- dddd
- Display number (decimal)
- ee...ee
- Process ID (decimal)
- ff...ff
- Transaction management table number (decimal)
- gg...gg
- Internal maintenance information (decimal, or character string 1-20 characters)
- hh...hh
- Name of request code (1-32 characters)
- xar_start: Transaction branch start processing
- xar_call: Remote procedure call from within a transaction branch
- xar_end: Transaction branch termination processing
- xar_prepare: Transaction branch preparation for commit processing (phase 1)
- xar_commit: Transaction branch commit processing (phase 2)
- xar_rollback: Transaction branch rollback processing
- xar_recover: Report transaction branches with the status Prepared or Heuristically Completed.
- xar_forget: Discard transaction branches with the status Heuristically Completed.
- xar_tbl_reserve: Internal maintenance information (detect entry release when the table is full)
- xar_trnrcvr: Internal maintenance information (detect RAP disconnection or failure of RAP-processing server)
- ii
- Position of information acquisition (2 characters)
- IN: Function entry
- OK: Function exit (normal termination)
- ER: Function exit (abnormal termination)
- jj...jj
- XA return code character string (character string, 1-20 characters) or return code (decimal)
- kk...kk
- Application server XID information within first 64 bytes of GTRID (hexadecimal)
- ll...ll
- Application server XID information within first 64 bytes of BQUAL (hexadecimal)
- mm...mm
- Application server XID detailed information: Format ID (hexadecimal)
- nn...nn
- Application server XID detailed information: GTRID size (hexadecimal)
- oo...oo
- Application server XID detailed information: BQUAL size (hexadecimal)
- pp...pp
- Application server XID: GTRID detailed information (hexadecimal or characters)
- qq...qq
- Application server XID: BQUAL detailed information (hexadecimal or characters)
- rr...rr
- OpenTP1 XID information: TRNGID character string (1-16 characters)
- ss...ss
- OpenTP1 XID information: TRNBID character string (1-16 characters)
- tt...tt
- OpenTP1 XID detailed information (hexadecimal)
Output messages
Message ID |
Description |
Output destination |
KFCA32029-E |
Processing could not continue due to insufficient memory in the process-specific area. |
Standard error output |
KFCA32100-I |
Help message |
Standard output |
KFCA32101-E |
XAR event trace information file was not found. |
Standard error output |
KFCA32102-E |
An error occurred during file manipulation. |
Standard error output |
KFCA32103-E |
xarevtr command usage is invalid. |
Standard error output |
KFCA32104-E |
xarevtr command cannot be executed. |
Standard error output |
KFCA32105-E |
An error occurred while the xarevtr command was executing. |
Standard error output |
