jnlrinf (Display journal information that is read during restart)

jnlrinf -j sys|jar

The jnlrinf command outputs the journal information that is read during restart.

-j sys|jar

Specifies the journal file containing the information to be displayed.

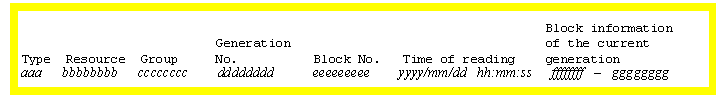

[Figure]

aaa
File type
sys: System journal file
jar: Archive journal file
bbbbbbbb
Resource group name (definition file name of the archive journal service definition specified in the global archive journal service definition)
cccccccc
File group name
dddddddd
Generation number (hexadecimal)
eeeeeeeee
Number of the block that is already read (hexadecimal)
yyyy/mm/dd hh:mm:ss.
Time when the block is read
ffffffff
Beginning block number of the generation currently processed (hexadecimal)
gggggggg
Last block number of the generation currently processed (hexadecimal)

The current file group and the failed file group are displayed as ********.

Message ID	Description	Output destination
KFCA01141-E	The command cannot be executed because OpenTP1 is running in journal fileless mode.	Standard error output
KFCA01280-E	The jnlrinf command cannot be executed.	Standard error output
KFCA01281-E	The format of the jnlrinf command is incorrect.	Standard error output
KFCA01282-E	The specified item is not found.	Standard error output
KFCA01284-I	Help message	Standard output, standard error output

Message KFCA01280-E may be output even when the OpenTP1 system is running if the journal service is not being restarted.
When the start status of the OpenTP1 system is "Restart" and the journal service is online, this command outputs the journal information that was read last.
