OpenTP1 Version 7 Operation
jnlarls (Display archive status)
Format
Function
The jnlarls command displays the relationship between resource groups for the global archive journal service and those for the journal service, and archive status.
Options
-z
Deletes the header line and displays status. If this option is omitted, the header line is displayed.

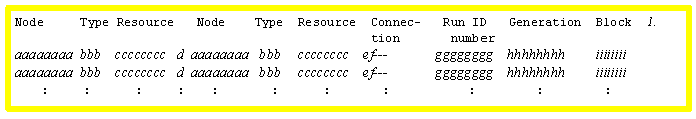

Output format
- The header line is not displayed if the -z option is specified.
- aaaaaaaa
- Name of an archive-journal target node or archive-journal source node
- bbb
- Type of a journal service or global archive journal service
- sys: System journal file
- jar: Archive journal file
- cccccccc
- Resource group name (definition file name of the system journal service definition or archive journal service definition)
- d
- Archive destination identifier
- >: Indicates that the archive journal is allocated on the right side of this mark.
- <: Indicates that the archive journal is allocated on the left side of this mark.
- e
- Connection status (which is recognized by the service indicated on the right side of the archive destination identifier)
- c: Connected or in service
- -: Not connected (for the global archive journal service; connected once or more in the past) or initialized status
- d: Waiting for output completion after normal disconnection or being disconnected
- f: Forced or waiting for output completion after service stop
- i: Being connected
- n: Non-service
- f
- Status of processing for a transfer-delayed journal
- w: Being buffered
- r: Reading
- s: To be stopped
- -: Displayed for archiver
- gggggggg
- Archive journal run ID (run ID on the journal server side which is recognized by the service indicated on the right side of the archive destination identifier)
- Archive identifier is >:
- Run ID on the journal server side for which the global archive journal service has been archived (output)
- Archive identifier is <:
- Run ID on the journal server side for which the journal service is being archived (transferred)
- hhhhhhhh
- Archive journal generation number (generation number on the journal server side which is recognized by the service indicated on the right side of the archive destination identifier)
- Archive identifier is >:
- Generation number on the journal server side for which the global archive journal service has been archived (output)
- Archive identifier is <:
- Generation number on the journal server side for which the journal service is being archived (transferred)
- iiiiiiii
- Archive journal block number (block number on the journal server side which is recognized by the service indicated on the right side of the archive destination identifier)
- Archive identifier is >:
- Block number on the journal server side for which the global archive journal service has been archived (output)
- Archive identifier is <:
- Block number on the journal server side for which the journal service is being archived (transferred)
Output messages
Message ID |
Description |
Output destination |
KFCA01141-E |
The command cannot be executed because OpenTP1 is running in journal fileless mode. |
Standard error output |
KFCA01280-E |
jnlarls command processing failed. |
Standard error output |
KFCA01281-E |
jnlarls command input format is invalid. |
Standard error output |
KFCA04127-I |
Help message. |
Standard output, standard error output |
Notes
If the jnlarls command is executed, a correct status may not be displayed in the following case:
- The journal data is being transferred from a system journal file to an archive journal file whose status has been changed.
