The following message is output, and OpenTP1 fails to obtain a file descriptor.

KFCA00307-E insufficient file descriptor for RPC.

• The date and time when the event occurred
• The name of the user server where the event occurred
• The history of operations on the user server
• Any changes made to the OpenTP1 environment immediately before the event occurred

• The information in Table 11-1

The message KFCA00327-E is output when OpenTP1 is unable to obtain a file descriptor to use for communication. The max_socket_descriptors operand specifies the maximum number of file descriptors. Common causes of this problem are as follows:

• Insufficient file descriptors are available because too small a value is specified for the max_socket_descriptors operand.
• A value specified for an OS kernel parameter^# is too small.

#

The names of the relevant kernel parameters depend on your OS. Different parameters determine how many file descriptors are available system-wide, and how many are available to individual processes. In the flow chart below, Kernel parameter (system-wide) refers to the maximum number of file descriptors available to the system in its entirety, and Kernel parameter (process) refers to the maximum number of file descriptors available to individual processes. If you change either kernel parameter, specify a value that offers sufficient leeway.

Investigate the cause of the error using the flow chart below.

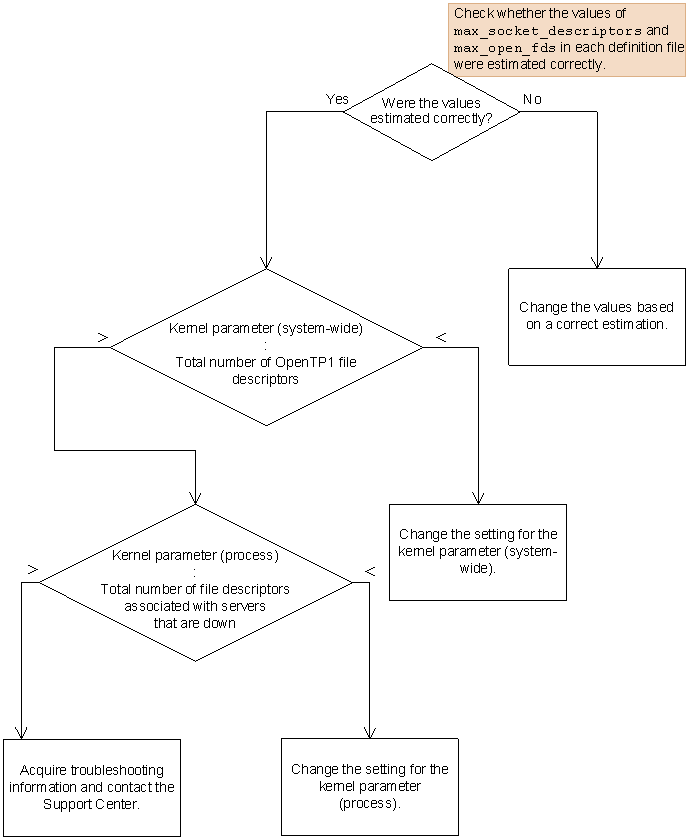

Figure 11-1 Troubleshooting procedure when message KFCA00307-E is output

The total number of file descriptors used by each server is the sum of the max_socket_descriptors and max_open_fds operands of the server. The total number of file descriptors used throughout the OpenTP1 system is the sum of the values of the max_socket_descriptors and max_open_fds operands of all the servers.

Check the values specified for the max_socket_descriptors operands of each server by referring to the table below. Calculate the file descriptors process-by-process.

Table 11-7 Values specified for max_socket_descriptors operand

No.	Server name	Valid value of max_socket_descriptors operand
1	prcd, itvd, stsd, cpdd, tjld, qued, damd, tamd, tamiod, ismbd, istd, logd, prfiod, cltcond, cltd, clttrnd, xatd, xatcd, rmmd, admrsvre, mcfrmgrd	The value specified in the system common definition (betranrc). If omitted, a value of 64 is used.
2	namd, namaudtd	The value specified in the name service definition (nam). If there is no name service definition, the value specified in the system common definition (betranrc) is used. If omitted, a value of 64 is used.
3	scdd, scdmltd	The value specified in the schedule service definition (scd). If there is no schedule service definition, the value specified in the system common definition (betranrc) is used. If omitted, a value of 64 is used.
4	trnd, trnrvd, trnrmd	The value specified in the transaction service definition (trn). If there is no transaction service definition, the value specified in the system common definition (betranrc) is used. If omitted, a value of 64 is used.
5	jnld, jnliod, jnlsdd, jnlswd, jard, jarswd, jarrvd	The value specified in the journal service definition (jnl). If there is no journal service definition, the value specified in the system common definition (betranrc) is used. If omitted, a value of 64 is used.
6	mcfmngrd, mapsmgrd, mcfcmdsv, mqtmngd	Fixed value of 64.
7	MCF application service, MCF communication service	The value specified in the system service common information definition ($DCDIR/lib/sysconf/mcf). If omitted, a value of 64 is used.
8	mqad, mqaiod, mqacmd, mqamnd	TP1/Message Queue version 05-12 or earlier: The value specified in the system common definition (betranrc). If omitted, a value of 64 is used. TP1/Message Queue version 05-13 or later: The value specified in the MQA service definition (mqa). If omitted, a value of 64 is used.
9	mqtdtcp	TP1/Message Queue version 05-13 or earlier: Fixed value of 304. TP1/Message Queue version 05-14 or later The value specified in the MQT service definition (mqt). If omitted, a value of 64 is used.
10	RAP-processing listener, RAP-processing server	The value specified in the RAP-processing listener service definition (name varies). If omitted, a value from one of the following is used (with 1. having priority over 2.). User service default definition (usrrc) System common definition (betranrc) If all three are omitted, a value of 64 is used.
11	User server	The value specified in the user service definition (name varies). If omitted, a value from one of the following is used (with 1 having priority over 2). User service default definition (usrrc) System common definition (betranrc) If all three are omitted, a value of 64 is used.
12	RTSSUP, RTSSPP	Fixed value of 64.

Check the values specified for the max_open_fds operands of each server by referring to the table below. Calculate the file descriptors process-by-process.

Table 11-8 Values specified for max_open_fds operand

No.	Server name	Valid value of max_open_fds operand
1	prcd, namd, namaudtd, scdd, scdmltd, trnd, trnrvd, trnrmd, jnld, jnlswd, jnliod, jnlsdd, jard, jarswd, jarrvd, itvd, stsd, cpdd, tjld, qued, damd, tamd, tamiod, ismbd, istd, logd, prfiop, cltcond, cltd, clttrnd, xatd, xatcd, rmmd, admrsvre, mcfmngrd, mcfrmgrd, mapsmgrd, mcfcmdsvmqad, mqaiod, mqacmd, mqamnd, mqtdtcp, mqtmngd	Fixed value of 50.
2	MCF application service, MCF communication service	The value specified in the system service common information definition ($DCDIR/lib/sysconf/mcf). If omitted, a value of 100 is used.
3	RAP-processing listener, RAP-processing server	The value specified in the user service default definition (usrrc). If omitted, a value of 50 is used.
4	User server	The value specified in the user service definition (name varies). If there is no user service definition, the value specified in the user service default definition (usrrc) is used. If omitted, a value of 50 is used.
5	RTSSUP, RTSSPP	Fixed value of 50.
