When you execute the Scale In scenario, the resources of nodes with a low load are released and allocated to other systems on a node or task basis. This scenario lets you use resources effectively.
The Scale In scenario provided by OpenTP1 includes a scenario for stopping OpenTP1 and releasing resources node by node and a scenario for stopping a UAP and releasing resources task by task. Execute one of the two scenarios. See the following for details about each scenario.
The following figure shows a scenario for stopping OpenTP1 and releasing the resources of an OpenTP1 node.

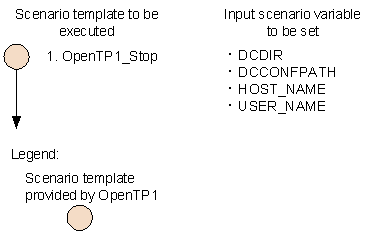

Figure 3-38 Scenario for stopping OpenTP1 and releasing resources
![[Figure]](FIGURE/ZU031000.GIF)
See the following table for an explanation of the scenario template.
Table 3-37 Scenario template in the scenario for stopping OpenTP1 and releasing resources
| No. | Scenario template name | Description |
|---|---|---|
| 1 | OpenTP1_Stop | Stops OpenTP1. |
This scenario template is provided by OpenTP1. For details, see M. Details About Scenario Templates.
The following figure shows a scenario for stopping a UAP and releasing the task resources of OpenTP1.

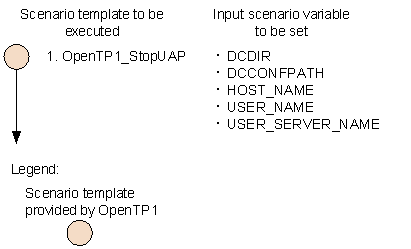

Figure 3-39 Scenario for stopping a UAP and releasing resources
![[Figure]](FIGURE/ZU031100.GIF)
See the following table for an explanation of the scenario template.
Table 3-38 Scenario template in the scenario for stopping a UAP and releasing resources
| No. | Scenario template name | Description |
|---|---|---|
| 1 | OpenTP1_StopUAP | Stops a UAP. |
This scenario template is provided by OpenTP1. For details, see M. Details About Scenario Templates.
