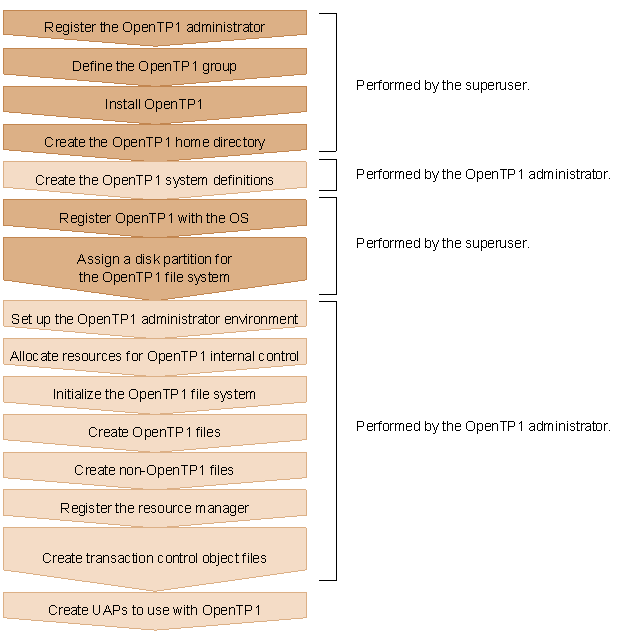

The following figure shows the procedure for setting up OpenTP1.

Figure 5-1 OpenTP1 environment setup

Part of OpenTP1 environment setup can be automated by using Scale Out scenario templates in collaboration with JP1/Base, JP1/AJS2, and JP1/AJS2 - Scenario Operation. For details about OpenTP1 environment setup using scenario templates, see the description of Scale Out scenario templates in the manual OpenTP1 Operation.

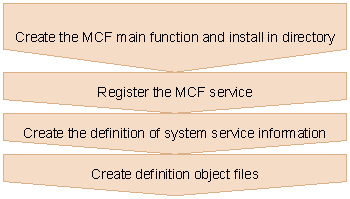

The following figure shows the environment setup for the message exchange facility.

Figure 5-2 Environment setup for the message exchange facility

For the environment setup for TP1/Messaging, see TP1/Messaging documentation.

The following figure shows the environment setup for the message queuing facility.

Figure 5-3 Environment setup for the message queuing facility
