This method allows a CPU to request a service from a server UAP (SPP) of OpenTP1 using library functions of TP1/Client/W or TP1/Client/P.
When you use TP1/Client/W or TP1/Client/P, you can start a transaction from a CUP also.

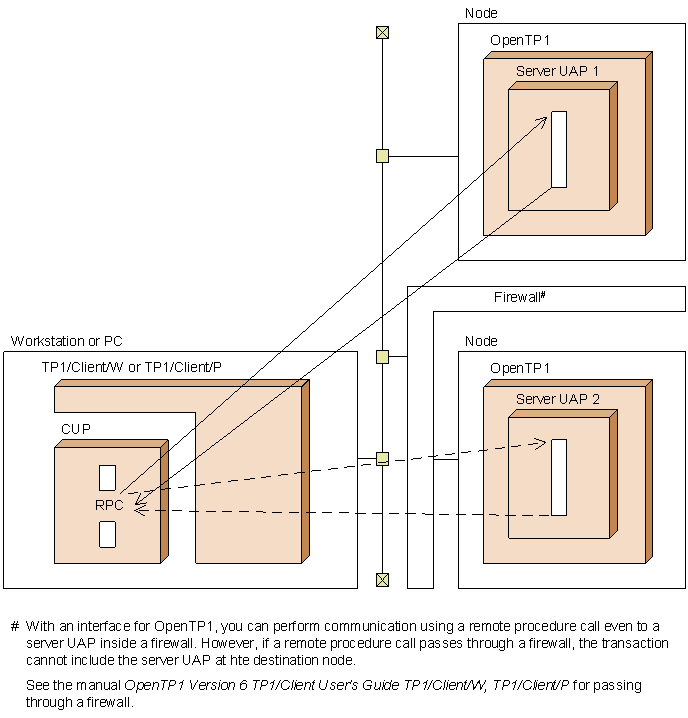

Figure 3-54 shows the communication between TP1/Client/W or TP1/Client/P and OpenTP1.
Figure 3-54 Communication between TP1/Client/W or TP1/Client/P and OpenTP1
From a Java applet, a Java application, or a Java servlet, you use the class library of TP1/Client/J to request a service from a server UAP (SPP) of OpenTP1.

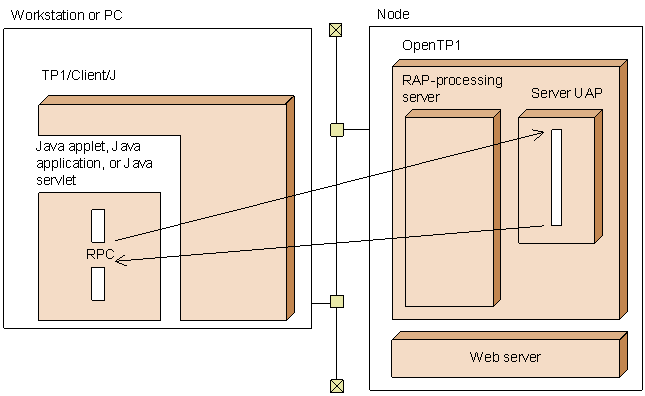

Figure 3-55 shows the communication between TP1/Client/J and OpenTP1.
Figure 3-55 Communication between TP1/Client/J and OpenTP1
If the following facilities are used in TP1/Client/W or TP1/Client/P, a client service definition will be required for an OpenTP1 server.
To use the remote API facility in TP1/Client/W or TP1/Client/P or to have TP1/Client/J request services from an SPP of OpenTP1, OpenTP1 must have the RAP-processing listener service definition.
Startup of UAP can be reported from the UAP server of OpenTP1 to the application program (CUP) of TP1/Client/W or TP1/Client/P. The startup of UAP server is reported by sending data with the dc_rpc_cltsend() function to CUP. Using this function can simultaneously report the completion of server startup to the clients.
The data reported by the dc_rpc_cltsend function is received by the dc_clt_chained_accept_notification or dc_clt_accept_notification function of CUP. TP1/ClientW or TP1/Client/P acknowledges that the server is being operated by receiving the data by CUP. After that, a service is requested from CUP to the server. For details about the dc_clt_chained_accept_notification and dc_clt_accept_notification functions, see the manual OpenTP1 TP1/Client User's Guide TP1/Client/W, TP1/Client/P.

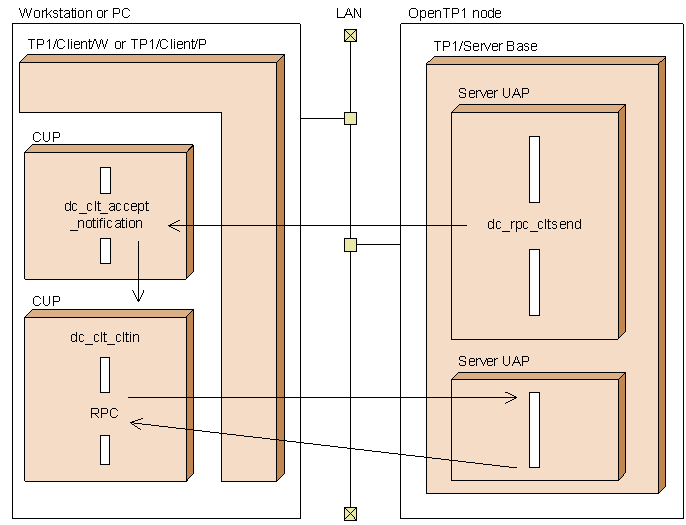

Figure 3-56 illustrates communication from a server UAP of OpenTP1 to a CUP of TP1/Client/W or TP1/Client/P.
Figure 3-56 Communication from a server UAP of OpenTP1 to a CUP of TP1/Client/W or TP1/Client/P
The maximum number of file descriptors used for the sockets in the transactional RPC execution process (clttrnd) is specified in the max_socket_descriptors operand of the user service default definition.
Use the following equation to specify the maximum number of file descriptors used for sockets:
(number-of-UAP-processes-that-involve-communication-by-transactional-RPC-execution-processes + 1 + number-of-system-service-processes) / 0.8
Note that the value you specify here will apply to all UAPs and to some system servers.
