TP1/Web converts Internet-based information exchange between a browser and a Web server into OpenTP1 remote procedure calls, and executes UAPs on an OpenTP1 server. Using this functionality, you can build a processing system that uses a Web browser as a terminal.

When linked with OpenTP1, TP1/Web can be used in the following types of processing systems:

• Online marketing and shopping
• Internet-based travel or event booking system, or hotel room booking system
• Corporate online systems that can be accessed via the Internet from domestic or overseas company sites or from another location during a business trip

TP1/Web can be used not only when connected to the Internet but also via an enterprise LAN. Figure 2-14 shows a system configuration using TP1/Web.

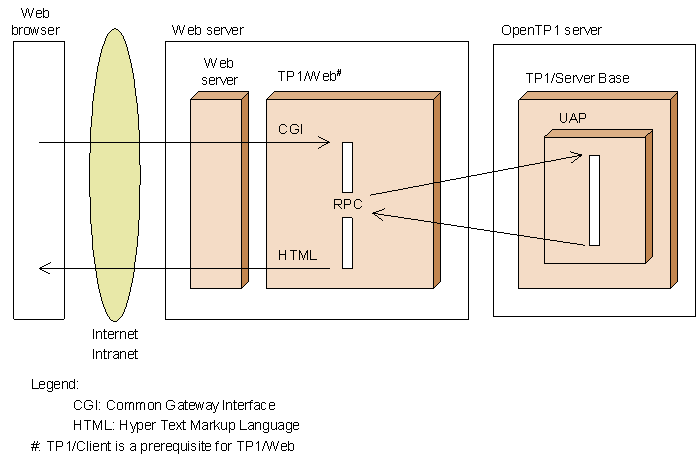

Figure 2-14 Configuration with TP1/Web
