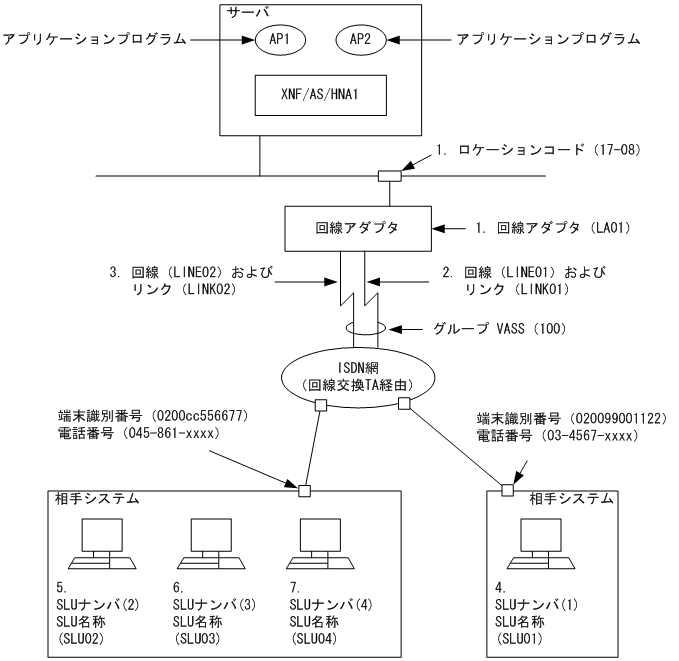

相手システムとISDN網（回線交換TA経由）で接続する場合の構成例（HNA1次局通信機能）を図4-14に示します。

図4-14　相手システムとISDN網（回線交換TA経由）で接続する場合の構成例

（凡例）

n.：定義文との対応

定義例を次に示します。なお，定義中の番号は，図4-14の番号と対応しています。


configuration
  version 1
  max_line  2
  max_link  2
  max_Line_adapter 2
  ;

HNA1_buffer
  number 4
  size 1028
  ;

SW_group_define
  name SWGRP01
  VASS 100
  line_type ISDN_TA_CS
  line_mode NRM1
  switch_type X21
  line_attribute in
  ;

Line_adapter    ...............................................1
  name LA01
  location_code 17-08
  ;
  group
    name NRM01
    type HDLC
    ;
    line    ...................................................2
      name LINE01
      number 01
      speed 64K
      ;
      link
        name LINK01
        SW_group_VASS 100
        connection_retry 1
        connection_time 0.5
        data_retry 25
        data_time 1.0
        ;

    line    ...................................................3
      name LINE02
      number 02
      speed 64K
      ;
      link
        name LINK02
        SW_group_VASS 100
        connection_retry 1
        connection_time 0.5
        data_retry 25
        data_time 1.0
        ;

HNA1
  max_PLU 2
  max_PU 2
  max_SLU 4
  max_connection 10
  ;
USSTBL
  table_number 1
  ;
USSDATA
  type on
  character LOGON
  logon_PLU_name BETRAN
  ;
USSTBL
  table_number 2
  ;
USSDATA
  type on
  character CONNECT
  logon_PLU_name PTS
  ;

HNA1_PU
  name PU01
  link_VASS 100
  send_segment_size 1024
  receive_segment_size 1024
  auto_start yes
  XID_character 020099001122
  TEL_number 034567XXXX
  outstand 7
  mode duplex
  NC_disconnect yes
  disconnect_time 0
  connection_hold_time 60
  ;
HNA1_SLU    ...................................................4
  name SLU01
  local_address 01
  FSS_USS_type USS
  USS_table 1
  ;

HNA1_PU
  name PU02
  link_VASS 100
  send_segment_size 1024
  receive_segment_size 1024
  auto_start yes
  XID_character 0200cc556677
  TEL_number 045861XXXX
  outstand 7
  mode duplex
  NC_disconnect yes
  disconnect_time 0
  connection_hold_time 60
  ;
HNA1_SLU    ...................................................5
  name SLU02
  local_address 02
  logon_PLU_name PTS
  ;
HNA1_SLU    ...................................................6
  name SLU03
  local_address 03
  through_PLU PTU
  ;
HNA1_SLU    ...................................................7
  name SLU04
  local_address 04
  FSS_USS_type USS
  USS_table 2
  ;
