1.6.39 Base conversion dialog

Specify the transformation source node or function for base conversion in the [Base conversion] dialog.

This dialog is displayed when you perform one of the following operations:

Right click the base conversion function and select [Setting]
Double click the base conversion dialog

The following figure shows the [Base conversion] dialog:

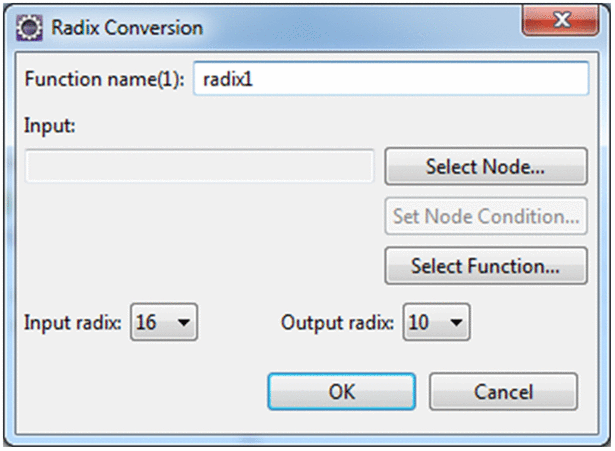

Figure 1‒140: [Base conversion] dialog

Organization of this subsection

(1) Displayed items
(2) Operations that can be performed in this dialog

(1) Displayed items

[Function name]

Displays the function name. If you want to change to any name, specify within 64 characters. You can use NCName definition characters of XML schema.

[Input]

Specify node for base conversion. If the change target and base conversion function are already mapped, the change target will be displayed.

For details about the display format in [Input], see "6.4.6 Mapping Source Display Format" in "Service Platform Basic Development Guide".

[Select node] button

Displays the [Select Node] dialog. Click this button when you want to specify in [Input], the node for base conversion.

For details about the [Select Node] dialog, see "1.6.8 Select Node Dialog (Data Transformation)".

[Set Node Condition] button

Displays the [Set Node Condition] dialog. Click this button to specify a condition for the node and allow only mapping to take place only when that condition is satisfied.

For details about the [Set Node Condition] dialog see "1.6.11 Set Node Condition Dialog". For details about how to set up condition for transformation source node, see "6.7 Specifying Node Conditions" in "Service Platform Basic Development Guide".

[Select function] button

Displays the [Select function] dialog. Click this button when you want to specify in [Input], a function for base conversion.

For details about the [Select function] dialog, see "1.6.9 Select function dialog".

[Input radix] dropdown list

Specify the base of input value. You can specify from the following options. You cannot specify the same value for input base and output base.

16 (hexadecimal)
10 (Decimal)
2 (Binary digit)

[Output radix] dropdown list

Specify the base of output value. You can specify from the following options. You cannot specify the same value for input base and output base.

16 (hexadecimal)
10 (Decimal)
2 (Binary digit)

[OK] button

Commits the specified contents and closes the dialog.

[Cancel] button

Cancels the specified contents and closes the dialog.

To Page Top

(2) Operations that can be performed in this dialog

You can set up the base conversion function with the [Base conversion] dialog. For details about how to set up base conversion, see "6.5 Processing value or node in which function is used" in "Service Platform Basic Development Guide".
