3.2.2 Legend items used for system configuration figures

This subsection shows the legend items used in the system configuration figures of chapter 3 and chapter 4.

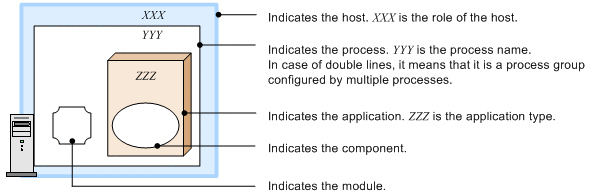

Figure 3‒6: Legend items used for system configuration figures

The color that indicates the host also indicates the host type for operation management by Management Server.

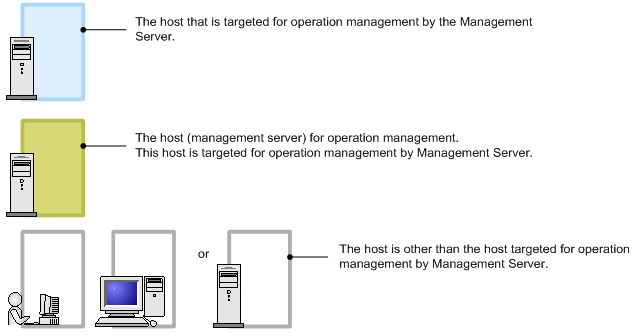

Figure 3‒7: Legend items used for figures in system configuration (classification of the host)

The legend items that are not explained here are given in the respective figures.
