B.1 Directory structure of application server
This section describes the directory structure of Application Server for each OS.
-
For Windows
The following figure shows the directory structure of Application Server for Windows. Note that "Cosminexus" is omitted from the name of the component software in the figure.

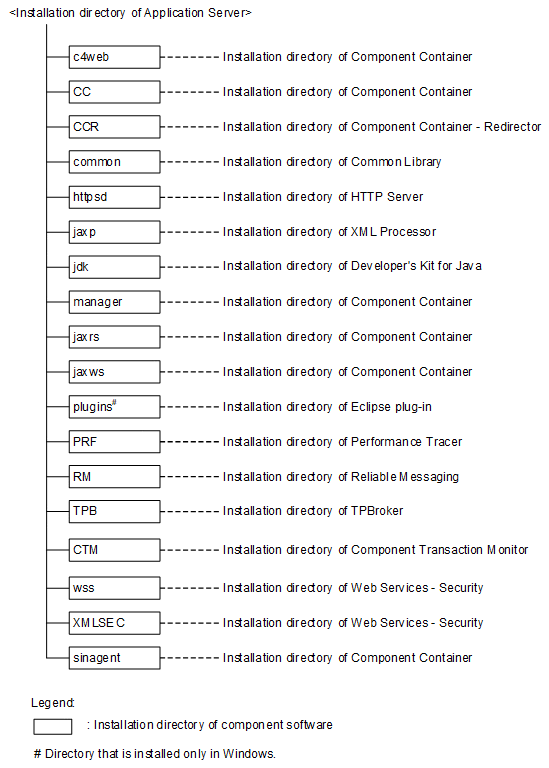

Figure B‒1: Directory structure of Application Server (for Windows) ![[Figure]](GRAPHICS/ZU070300.GIF)
-
For UNIX
The following figure shows the directory structure of Application Server for UNIX. Note that "Cosminexus" is omitted from the name of the component software in the figure.

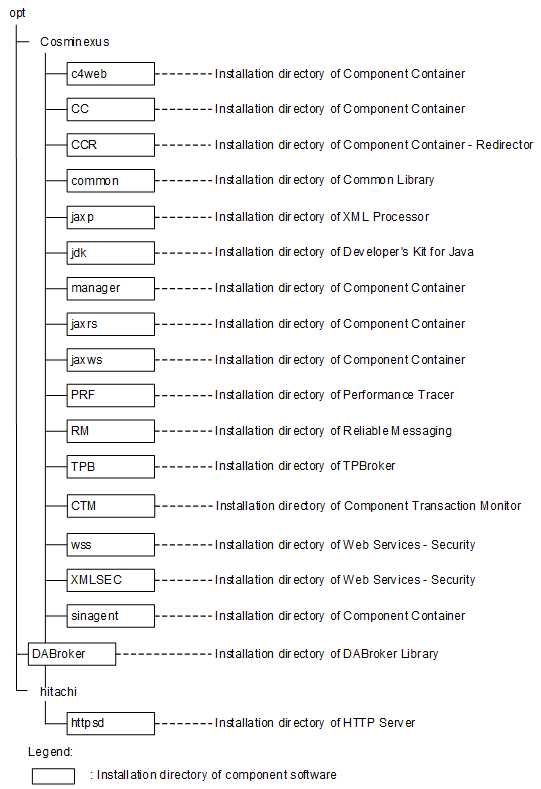

Figure B‒2: Directory structure of Application Server (for UNIX) ![[Figure]](GRAPHICS/ZU070400.GIF)
- Important note
-
Installation directory
If you install Application Server, the directory attributes of /opt or /opt/Cosminexus might be changed.
