JP1 Version 12 JP1/SNMP System Observer Description, Operator's Guide and Reference


6.3.31 GUI log definition file (ssoguilog.conf)

In the GUI log definition file, define the settings for logging operations performed from the GUI. The GUI log definition file is read when a GUI component is activated. Therefore, if you change a definition in this definition file while you are using a GUI component, you must re-activate the GUI component.

Organization of this subsection

(1) Format

The following shows the format of the GUI log definition file.

[Figure]

When coding definitions in the GUI log definition file, note the following:

(2) Description

The next table lists the items that must be, or can be, defined in the GUI log definition file.

Key name

Value

LOG_LEVEL

<<ERROR>> ((OFF|ERROR|WARN|INFO))

Specify a log output level. Specifiable levels are as follows:

OFF: Does not output log.

ERROR: Outputs only error log.

WARN: Outputs error log and warning log.

INFO: Outputs warning log and information log.

FILE_SIZE

<<4>> ((1 to 100 megabytes))

Specify the maximum size of the log file.

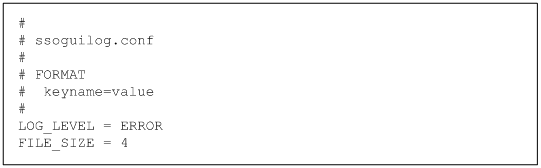

(3) Example

The following is an example of defining the GUI log definition file.

[Figure]

(4) Note

If you want to change a definition in the GUI log definition file, deactivate all GUI components such as windows, change the definition in the GUI log definition file, delete the existing GUI log file (ssogui_*.log), and then re-activate the GUI components.
