4.4.17 IDaaS linkage configuration

(1) When using an authentication server in your on-premises environment

Minimal device configuration

The following figure shows a minimal device configuration for building Keycloak authenticator servers in an on-premises deployment.

When using multi-factor authentication with a smartphone

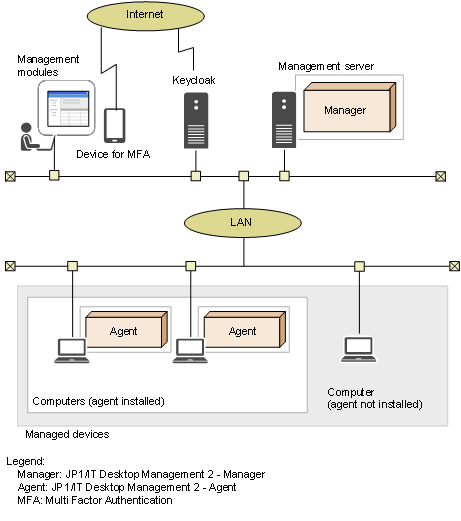

The following figure shows the configuration when using multi-factor authentication (one-time passcode authentication) using a smartphone.

When using multi-factor authentication via email

If you want to use multi-factor e-mail authentication (e-mail one-time passcode), you need a mail server to send e-mail from your Keycloak. The following figure shows the configuration when using a mail server.

To Page Top

(2) When using a cloud authentication server

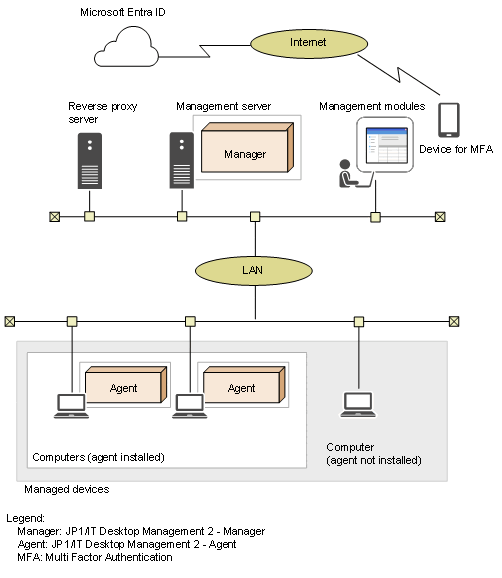

The following figure shows a minimal device configuration for IDaaS linkage using Microsoft Entra ID service.

For Microsoft Entra ID, the redirect URI must use the "https" scheme, so using reverse proxy is required to enable HTTPS access to the management window.

You also need a device, such as a smartphone, that matches the multi-factor authentication settings of your ID provider.
