7.2.1 Define Details window for service linkage jobs

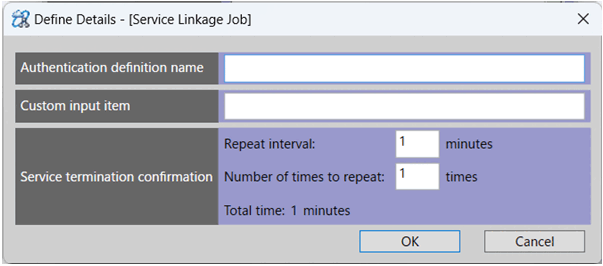

The Define Details window for service linkage jobs is explained below.
|
|
![[Figure]](./GRAPHICS/ZU070010.GIF)
The following are display items and restrictions on input values in the Define Details window for Service Linkage Job:
- Authentication definition name
-
Enter the authentication definition to be used for the service linkage job.
- Custom input item
-
Enter the custom input item to be used for the service linkage job.
- Service termination confirmation
-
This item is displayed when the end confirmation processing is to be retried as specified in the execution definitions of service linkage jobs. Enter the repeat interval and the number of times to repeat as the conditions for checking the status of the service linked by the service linkage job until the service terminates.
- Repeat interval
-
Enter the repeat interval when the end confirmation processing is to be retried as specified in the execution definitions of service linkage jobs.
- Number of times to repeat
-
Enter the number of times to repeat when the end confirmation processing is to be retried as specified in the execution definitions of service linkage jobs.
- Important
-
An error occurs if the product of the repeat interval and the number of times to repeat exceeds 2,880.
|
No. |
Display item |
Input format |
Input restriction |
Required/Not required |
Assumed value |
|---|---|---|---|---|---|
|
1 |
Authentication definition name |
Text box |
A character string of up to 64 bytes. Alphanumerics, hyphens (-), underscores (_), slashes (/), question marks (?), and periods (.) can be used. Macro variables can be specified for this input item. |
Not required |
None |
|
2 |
A value specified in Label Name in AJS3 - View Custom Input Items in the Variable Settings dialog box of the Execution Definition window of the Web GUI |
Text box |
Restrictions are imposed by the rules specified in Character String Length and Prohibited Characters in AJS3 - View Custom Input Items. For details, see 7.1.8 (4) Setting variables dialog box. Macro variables can be specified for this input item. |
Not required |
None |
|
3 |
Repeat interval |
Text box |
A value from 0 to 10. Units: Minutes |
Required |
# |
|
4 |
Number of times to repeat |
Text box |
A value from 0 to 2880. Units: Times |
Required |
# |
- #
-
If, in the Output definition file dialog box in the Service linkage job definitions window, you select Specify for each custom job for Service termination confirmation setting and select the Use the settings in the execution definition as the default checkbox, the assumed value is the value set in the execution definitions for service linkage jobs. In all other cases, the assumed value is None.
For details on the Output definition file dialog box, see 7.1.6(1) Output definition file dialog box.
