7.1.11 Authentication definitions window

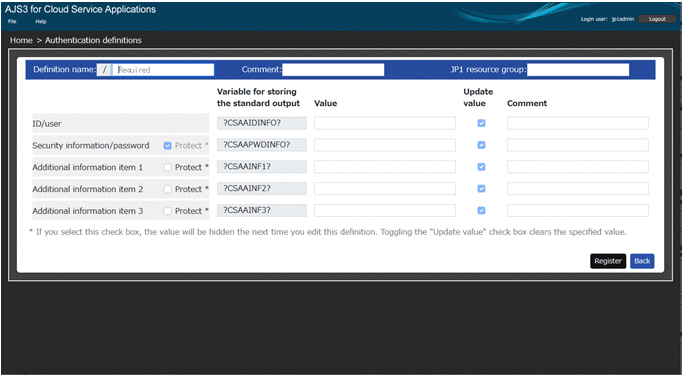

In the Authentication definitions window, you can view and edit authentication definitions in detail.
|
|
![[Figure]](GRAPHICS/ZU060110.GIF)
The following shows the display items and input restrictions for the Authentication definitions window:
- Definition name
-
Enter the definition name of the authentication definition information. It is saved in the format of /definition-name. It cannot be changed when editing.
- Comment
-
Display the comment of the authentication definition information.
- JP1 resource group
-
Display the JP1 resource group of the authentication definition information.
- Register button
-
Click this button to register the connection definitions, which have been input on the Authentication definitions screen with JP1/AJS3 for Cloud Service Applications. When registration is successfully completed, the Home window is displayed.
If an error occurs, the item with the error is highlighted.
- Back button
-
Go to the Home window without doing anything.
No.
Display item
Input format
Input restriction
Required/Not required
Assumed value
1
Definition name
Text box
Character string of 1 to 30 bytes.
Single-byte alphanumeric characters, - (hyphen), and _ (underscore) are available.
Required
None
2
Comment
Text box
Character string within 243 bytes.
Not required
None
3
JP1 resource group
Text box
Character string within 63 bytes.
Single-byte alphanumeric characters and _ (underscores) are available.
Not required
JP1_CSA
- Organization of this subsection
(1) ID/user
Sets the ID and user information used to connect to the service.
The following shows the display items for ID/user:
- Variable for storing the standard output
-
The variable name storing the ID and user information is fixed to ?CSAAIDINFO?.
- Value
-
Enter a value to be set for the variable.
- Update value
-
Select whether to update the value at the time of registration. With the item selected, the Value field is enabled. Without the item selected, the Value field is disabled.
This item must remain selected because the item is always updated at the time of new creation. With this item selected, the value is updated.
- Comment
-
Enter a comment of the value.
No.
Display item
Input format
Input restriction
Required/Not required
Assumed value
1
Value
Text box
Character string of 128 bytes or less.
You can use an alphanumeric character (ASCII).
Required
None
2
Comment
Text box
Character string within 48 bytes.
Required
None
(2) Security information/password
Set security information and a password for connection with a service.
The following shows the display items for Security information/password:
- Protect
-
The data are protected as security information. The selection status cannot be changed.
- Variable for storing the standard output
-
The variable name storing the security information and password is fixed to ?CSAAPWDINFO?.
- Value
-
Enter a value to be set for the variable.
Each input character is displayed with •.
Without the Update value selected, the field is always shown with • • • When the Update value is selected, the input characters are overwritten with null characters.
When editing, • • • is always displayed regardless of the value at the time of registration.
- Update value
-
Select whether to update the value at the time of registration. With the item selected, the Value field is enabled. Without the item selected, the Value field is disabled.
- Comment
-
Enter a comment of the value.
No.
Display item
Input format
Input restriction
Required/Not required
Assumed value
1
Value
Text box
Character string of 128 bytes or less.
You can use an alphanumeric character (ASCII).
Required
None
2
Comment
Text box
Character string within 48 bytes.
Required
None
(3) Additional information item 1 to 3
Set other additional information to be used for connection with a service.
The following shows the display items and input restrictions of the Additional information item 1 to Additional information item 3.
- Protect
-
The data are protected as security information.
- Variable for storing the standard output
-
The variable name storing additional information is fixed to ?CSAAINF1? through ?CSAAINF3?.
- Value
-
Enter a value to be set for the variable. The display differs depending on whether Protect is selected or not.
-
Without the Protect selected
The input characters are displayed as they are.
The input characters are displayed as they are regardless of whether the Update value is selected.
-
With the Protect selected
Each input character is displayed with •.
Without the Update value selected, the field is always shown with • • • When the Update value is selected, the input characters are overwritten with null characters.
When editing the definition registered with the Protect selected, • • • is always displayed regardless of the value at the time of registration.
-
- Update value
-
Select whether to update the value at the time of registration. With the item selected, the Protect is enabled and the Value field is enabled. Without the item selected, the Value and Protect are disabled.
- Comment
-
Enter a comment of the value.
No.
Display item
Input format
Input restriction
Required/Not required
Assumed value
1
Value
Text box
Character string of 128 bytes or less.
You can use an alphanumeric character (ASCII).
Required
None
2
Comment
Text box
Character string within 48 bytes.
Required
None
