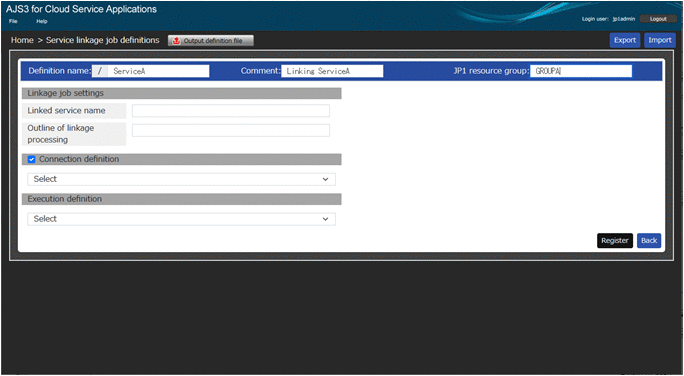

7.1.6 Service linkage job definition window

In the Service linkage job definition window, you can view and edit service linkage job definitions in detail.

The following shows the display items and input restrictions for the Service linkage job definition window:

Definition name

Enter the definition name of the service linkage job information. It is saved in the format of /definition-name. It cannot be changed when editing.

Comment

Display the comment of the service linkage job information.

JP1 resource group

Display the JP1 resource group of the service linkage job information.

Linkage job settings

Set linkage information of a service linkage job information.

Linked service name

Enter a linkage-destination service name to be linked by the service linkage job. This information can be managed as information that associates the cloud service after job execution. Therefore, complete this item whenever possible.

Outline of linkage processing

Enter the overview of processing to be linked by the service linkage job. This information can be managed as information that associates the executed processing of the cloud service after job execution. Therefore, complete this item whenever possible.

Connection definition

Use this item to show whether or not to use connection definitions for the service linkage job. With this item selected, the drop-down list allows you to select a connection definition. Without this item selected, no drop-down list is displayed.

Execution definition

Select an execution definition to use for the service linkage job from the drop-down list.

Output definition file button

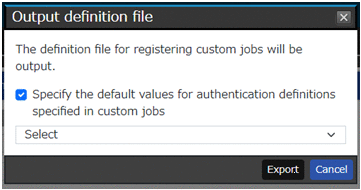

This button displays the Output definition file dialog to output a service linkage job definition information file necessary for registration with JP1/AJS3 -View. For details, see 7.1.6(1) Output definition file dialog box.

Export button

Clicking this button outputs the service linkage job information being displayed as the service linkage job definitions file (sljobdefExport.txt). This file will be output to the download folder set by the Web browser.

For details about a service linkage job definitions file, see F.3 Service linkage definition file.

Note

Even during input of service linkage job definitions, a service linkage job definition file can be exported.

Import button

Click this button to display the Open dialog allowing you to select a service linkage job definition file to be reflected to the screen. Select a service linkage job definition file. It will be reflected on the Service linkage job definitions screen.

For details about the format of a service linkage job definitions file, see F.3 Service linkage definition file.

Note

Even during input of service linkage job definitions, the service linkage job definition file can be imported.

Register button

Click this button to register the service linkage job definitions, which have been input on the Service linkage job definitions screen with JP1/AJS3 for Cloud Service Applications. When registration is successfully completed, the Home window is displayed. If an error occurs, the item with the error is highlighted.

Back button

Go to the Home window without doing anything.

No.	Display item	Input format	Input restriction	Required/Not required	Assumed value
1	Definition name	Text box	Character string of 1 to 30 bytes. Single-byte alphanumeric characters, - (hyphen), and _ (underscore) are available.	Required	None
2	Comment	Text box	Character string within 243 bytes.	Not required	None
3	JP1 resource group	Text box	Character string within 63 bytes. Single-byte alphanumeric characters and _ (underscores) are available.	Not required	JP1_CSA
4	Linked service name	Text box	Character string within 150 bytes.	Not required	None
5	Outline of linkage processing	Text box	Character string within 243 bytes.	Not required	None
6	Connection definition	List box	Specify the registered connection definition.	Required#	None
7	Execution definition	List box	Specify the registered execution definition.	Required	None

#: In case of using a connection definition.

Organization of this subsection

• (1) Output definition file dialog box
