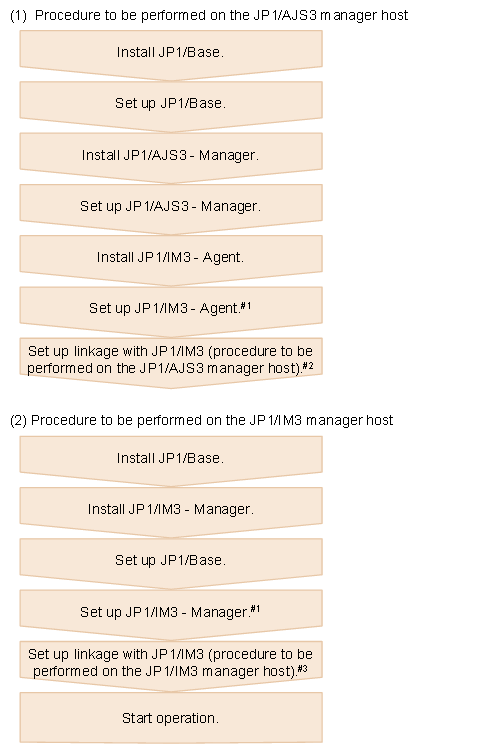

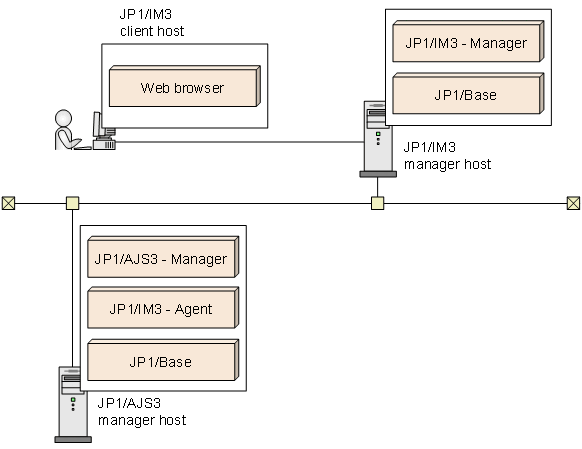

9.4.1 Setup procedure for linking JP1/IM3

Open the Script exporter configuration file.

For the Script exporter configuration file, see the manual JP1/Integrated Management 3 - Manager Command, Definition File and API Reference.

Use the Script exporter configuration file to configure Script exporter for IM3 linkage.

The configuration details are as follows:

scripts:
  ...
  - name: ajseventmetrics
    command: <absolute-path-of-the-ajseventmetrics-command>
    timeout:
      max_timeout: 60
      enforced: true
  ...

For details about the ajseventmetrics command, see 9.7.2 Commands Used When Linking with JP1/IM3.

Save the Script exporter configuration file.

Open the Prometheus configuration file.

For the Prometheus configuration file, see the manual JP1/Integrated Management 3 - Manager Command, Definition File and API Reference.

Register the Script exporter that you configured in step 2 in the Prometheus configuration file.

The configuration details are as follows:

  ...
  - job_name: 'jpc_jp1ajs3'
    scrape_interval: 1m
    scrape_timeout: 50s
    http_sd_configs:
      - url: 'http://<installation-hostname>:<script-exporter-port> /discovery'
    relabel_configs:
      - source_labels: [__param_script]
        regex: 'ajseventmetrics'
        action: 'keep'
      - source_labels: [__param_script]
        target_label: jp1_pc_script
      - target_label: jp1_pc_exporter
        replacement: JPC Script exporter
      - target_label: jp1_pc_category
        replacement: Script
      - target_label: jp1_pc_trendname
        replacement: script_exporter
      - target_label: jp1_pc_multiple_node
        replacement: "{job=~'jpc_jp1ajs3.*',__name__=~'script_.*'}"
      - target_label: jp1_pc_nodelabel
        replacement: JP1/AJS3 metric collector(Script exporter)
      - target_label: jp1_pc_agent_create_flag
        replacement: false
    metric_relabel_configs:
      - source_labels: ['__name__']
        regex: 'script_success|script_duration_seconds|script_exit_code|ajs_rootjobnet_exectime'
        action: 'keep'
      - source_labels: [jp1_pc_script]
        target_label: jp1_pc_nodelabel
      - source_labels: ['__name__','ajs_host','ajs_scheduler','ajs_rootjobnet']
        regex: 'ajs_rootjobnet_exectime;(.*);(.*);(.*)'
        target_label: jp1_pc_nodelabel
        replacement: ${1}:${2}:${3}
      - source_labels: ['__name__','ajs_host']
        regex: 'ajs_rootjobnet_exectime;(.*)'
        target_label: instance
        replacement: ${1}
      - source_labels: ['__name__']
        regex: 'ajs_rootjobnet_exectime'
        target_label: jp1_pc_trendname
        replacement: ajs_rootjobnet
      - regex: (jp1_pc_script|jp1_pc_multiple_node|jp1_pc_agent_create_flag)
        action: labeldrop
      - source_labels: ['__name__']
        regex: 'ajs_rootjobnet_exectime'
        target_label: jp1_pc_category
        replacement: ''
      - source_labels: ['__name__']
        regex: 'ajs_rootjobnet_exectime'
        target_label: jp1_pc_exporter
        replacement: ''
      - source_labels: ['__name__']
        regex: 'ajs_rootjobnet_exectime'
        target_label: jp1_pc_trendname
        replacement: ''
 ...

In addition, when setting up scraping definitions by using any Script exporter other than the Script exporter for IM3 linkage, include the following settings in the scraping definitions:

...
  - job_name: 'Scrape-Job-Name-used-by-the-Script-exporter-you-specified'
...
    relabel_configs:
      - source_labels: [__param_script]
        regex: 'ajseventmetrics'
        action: 'drop'
...

Save the Prometheus configuration file.

Define the performance data monitoring notification function as necessary.

To monitor the link metrics, set up alert definitions in the alert configuration file. For details on performance data monitoring and notification functions, see the JP1/Integrated Management 3 - Manager Overview and System Design Guide. For details on the alert configuration file, see the manual JP1/Integrated Management 3 - Manager Command, Definition File and API Reference.

The following shows an example of an alert definition:

• Anomaly monitoring of root jobnet execution time

  The following alert definition example issues an alert when the Z score exceeds 3 compared to the execution time pattern for the past year.

...
    - alert: AJS_ROOTJOBNET_EXECTIME_ANOMALY_DETECTION(Script exporter)
      expr: abs(ajs_rootjobnet_exectime - avg_over_time(ajs_rootjobnet_exectime[1y#1])) / (stddev_over_time(ajs_rootjobnet_exectime[1y#1]) > 0) > 3#2
      for: 1m
      labels:
        jp1_pc_product_name: "/HITACHI/JP1/AJS2"
        jp1_pc_component: "/HITACHI/JP1/AJS3/CONFINFO"
        jp1_pc_severity: "Error"
        jp1_pc_eventid: 000041D0
        jp1_pc_metricname: "ajs_rootjobnet_exectime"
      annotations:
        jp1_pc_firing_description: "An anomaly was detected in the execution time of the root jobnet. ({{ $labels.jp1_pc_nodelabel }})"
        jp1_pc_resolved_description: " Anomaly monitoring of root jobnet execution time is complete. ({{ $labels.jp1_pc_nodelabel }})"
...

#1

Period of historical data used for Z score calculation

#2

Threshold used for abnormality judgment of Z score

• Monitoring for signs of delays in root jobnet execution time

  The following alert definition example calculates an approximate straight line from the execution times of the root jobnet (/rootjobnet) defined in the scheduler service AJSROOT1 of the JP1/AJS3 - Manager host ajsmgr over the past year. It issues an alert if the predicted value for one day later exceeds 3,600 seconds.

...
    - alert: AJS_ROOTJOBNET_EXECTIME_DELAY_EARLY_DETECTION(Script exporter)
      expr: predict_linear(ajs_rootjobnet_exectime(ajs_host="ajsmgr#1",ajs_scheduler="AJSROOT1 #2",ajs_rootjobnet="/rootjobnet#3")[1y#4],86400 #5) > 3600#6
      for: 1m
      labels:
        jp1_pc_product_name: "/HITACHI/JP1/AJS2"
        jp1_pc_component: "/HITACHI/JP1/AJS3/CONFINFO"
        jp1_pc_severity: "Error"
        jp1_pc_eventid: 000041D0
        jp1_pc_metricname: "ajs_rootjobnet_exectime"
      annotations:
        jp1_pc_firing_description: "A sign of a delay in the execution time of the root jobnet was detected. ({{ $labels.jp1_pc_nodelabel }})"
        jp1_pc_resolved_description: "Monitoring for signs of delays in root jobnet execution time is complete. ({{ $labels.jp1_pc_nodelabel }})"
 ...

#1

JP1/AJS3 - Manager host name

- For a physical host: Host name of the host on which JP1/AJS3 - Manager is installed

- For a logical host: Logical host name

#2

Scheduler service name

#3

Name of the root jobnet to be monitored

#4

Period of historical data used for calculating the approximate straight line

#5

Time (in seconds) until the time of the future value you want to predict on the approximate straight line

#6

Threshold (seconds) for execution time for the root jobnet

Change the retention period for performance data as necessary.

Set the retention period for performance data in the service definition file or unit definition file. For the service definition file or unit definition file, see the manual JP1/Integrated Management 3 - Manager Command, Definition File and API Reference.

Open the JP1/AJS3 plugin settings file in which definitions were specified during setup for linkage with JP1/IM2.

For the location of the JP1/AJS3 plugin settings file and the items to be set in the file for linkage with JP1/IM2, see 9.3.1(1) Setting up linkage with JP1/IM2 (procedure to be performed on the JP1/IM2 manager host).

Add the imHost setting item to the definitions in the JP1/AJS3 plugin settings file.

Specify definitions in the following format.

{
  "ajswebconUrl":"value",
  "linkValueLimit":value,
  "prewaitLink":"{y|n}",
  "netcnLink":"{y|n}",
  "evRegexLink":"{y|n}",
  "evMacroLink":"{y|n}",
  "evotherLink":"{y|n}",
  "evIpLink":"{y|n}",
  "imHost":{
    "Name-of-the-JP1/AJS3-Manager-host-to-be-monitored":{
      "Name-of-the-scheduler-service-to-be-monitored":{
        "immgrHost":"Name-of-the-JP1/IM3-manager-host",
        "imagtHost":"Name-of-the-JP1/IM3-agent-host"
      },
      ...
    },
    ...
  }
}

The following table shows the items to be set.

Save the JP1/AJS3 plugin settings file.

As required, edit the metric definition file (metrics_ajs_rootjobnet.conf).

The following shows the storage folders for metric definition file (metrics_ajs_rootjobnet.conf).

• In Windows

  JP1/IM3-Manager-installation-folder\jp1imm\conf\imdd\plugin\jp1pccs

  or

  shared-folder\jp1imm\conf\imdd\plugin\jp1pccs

• In UNIX

  /etc/opt/jp1imm/conf/imdd/plugin/jp1pccs

  or

  shared-directory/jp1imm/conf/imdd/plugin/jp1pccs

The details listed are as follows:

[
  {
    "name":"AJS_ROOTJOBNET_EXECTIME",
    "default":true,
    "promql":"avg_over_time(ajs_rootjobnet_exectime[$stepTime{minSeconds=\"60\"}]) and $jp1im_TrendData_labels",
    "resource_en":{
      "category":"time",
      "label":"Execusion time of root jobnet",
      "description":"It is the time from the start to the end of the root jobnet.",
      "unit":"sec"
    },
    "resource_ja":{
      "category":"",
      "label":"",
      "description":"",
      "unit":""
    }
  }
]

Generate IM management node-related files and reflect the definition contents in the Intelligent Integrated Management server.

For details, see the JP1/Integrated Management 3 - Manager Configuration Guide.

If necessary, change the data retention period of the trend data management database of JP1/IM3 - Manager.

For details about how to change the data retention period, see the JP1/Integrated Management 3 - Manager Overview and System Design Guide.
