12.2 Setup for linking JP1/PFM

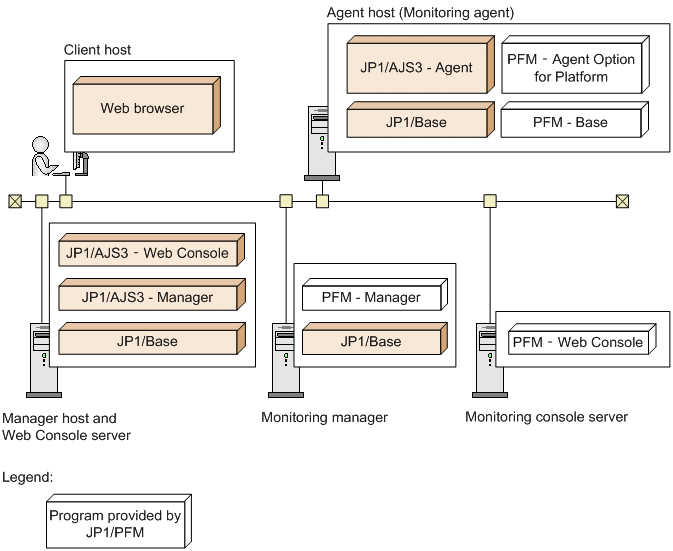

The following figure shows an example of a system configuration for linking with JP1/PFM.
|
|
![[Figure]](GRAPHICS/ZUL16070.GIF)
In the above example, PFM - Manager collects the operating status of the agent host (monitoring agent). The user who is logged in to PFM - Web Console from a web browser installed on the client host can monitor the operating status of the agent host. The user can also use a web browser on the client host to invoke PFM - Web Console from the Web GUI (Job Portal).
- Cautionary note
-
For the monitoring host name of JP1/PFM, set the name of a manager host or agent host that is managed. Note the following when you set the host name:
- If the monitoring target is a manager host:
-
In a physical host operating environment, set a real host name for the monitoring host name of JP1/PFM. In a logical host operating environment, set a logical host name for the monitoring host name of JP1/PFM.
Note that the monitoring host name of JP1/PFM cannot be specified in FQDN format. If the real host name has FQDN format, set an alias name for the monitoring host name of JP1/PFM.
- If the monitoring target is an agent host:
-
For the monitoring host name of JP1/PFM, specify the execution host name that was specified when an execution agent was added.
Note that the monitoring host name of JP1/PFM cannot be specified in FQDN format. If the real host name has FQDN format, set an alias name for the monitoring host name of JP1/PFM. In this case, also set the same alias name for the execution host name.
To open the PFM - Web Console window from the Web GUI (Job Portal), set the following entries in the JP1/AJS3 - Web Console environment settings file:
-
PFM_URL
The URL for accessing PFM - Web Console
-
HOSTNAME_ALIAS_FOR_PFM
The JP1/AJS3 - Manager host alias name to be passed to PFM - Web Console#
- #
-
For the host alias name, specify the alias name that is set for the monitoring host name of JP1/PFM.
For details about the setting item, see 3.4.3 Details on the settings in the environment-settings file (ajs3web.conf) in the JP1/Automatic Job Management System 3 Configuration Guide (if the OS of the Web Console server is Windows), or 13.3.3 Details on settings in the environment-settings file (ajs3web.conf) in the JP1/Automatic Job Management System 3 Configuration Guide (if the OS of the Web Console server is UNIX).
For details about installing and setting JP1/PFM, see JP1/Performance Management Planning and Configuration Guide. For details about building a system in which PFM - Manager collects the operating status of the JP1/AJS3 - Manager and JP1/AJS3 - Agent hosts, see the JP1/Performance Management Planning and Configuration Guide, and the JP1/Performance Management User's Guide.
