L.1 System configuration for using JP1/Base linked with the auto-scaling functionality

This subsection describes the system configuration needed to use JP1/Base linked with the auto-scaling functionality.

The system consists of hosts to be monitored (agent hosts) and a host that monitors the agents (manager host).

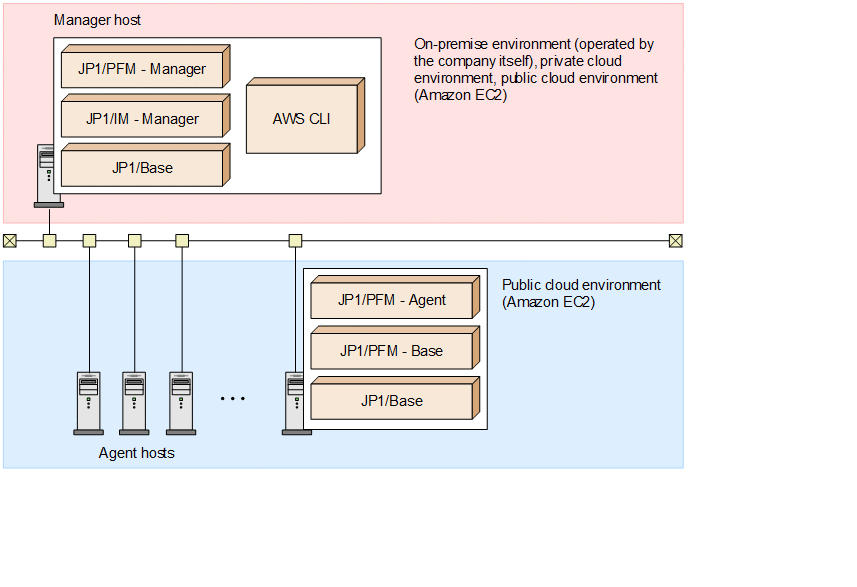

Figure L‒1: System configuration for using JP1/Base linked with the auto-scaling functionality

Organization of this subsection

(1) Prerequisite cloud services

Amazon EC2 service

Windows

Linux

The programs to be installed on the manager host and the agent hosts are as follows:

Manager host

#: The scripts bundled with JP1/Base have been tested with AWS CLI version 2.0.0 (released on 2020-02-10). You can use them within the range of versions where there is no change in the interface of the AWS CLI commands (aws ec2 describe-instance-status, aws ec2 describe-instances) used in the scripts bundled with JP1/Base.

If you want to use Amazon EC2 API Tools for compatibility, install the following program instead of the above program:

If you plan to use JP1/PFM for monitoring, install the following program:

Agent hosts

If you plan to use JP1/PFM for monitoring, install the following programs:

The environment conditions for the manager host and the agent hosts are as follows:

Manager host: There are no special restrictions. The manager host can be run in either a physical machine environment or a virtual machine environment (including on a virtual machine in a cloud environment).
Agent hosts: Agent hosts must be run in a virtual machine environment (Amazon EC2 instance) provided by the Amazon EC2 service.
