2.5.2 Tree chart format

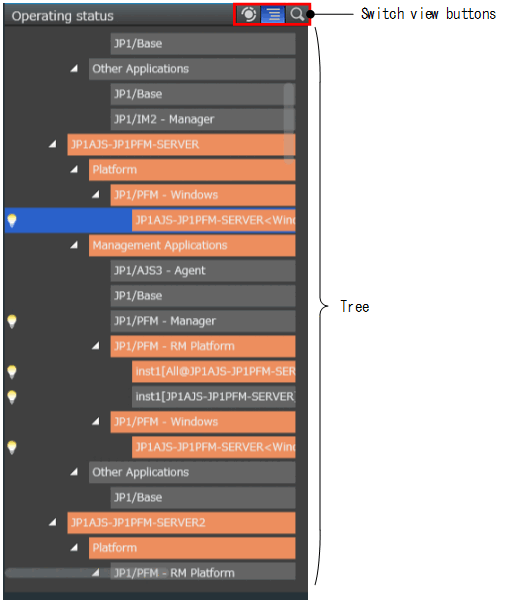

Figure 2‒42: Operating status area in the tree chart format

The following describes the items displayed in the Operating status area in the tree chart format.

Switch view buttons

: Indicates that the Operating status area is displayed in the tree chart format.

: Switches the display format of the Operating status area from the tree chart format to the sunburst chart format.

: Switch the display format of Operation Status from the tree to the search result.

Tree chart

The tree chart allows users to monitor the system status visually with a centralized tree view. It displays the names of the components for each hierarchy level in the sunburst chart. The colors used in the tree chart are the same as those in the sunburst chart. The component selected in the sunburst chart appears in blue in the tree chart to indicate that it is selected.

The information in the Details area changes depending on the component clicked in the tree chart.

With the tree chart, the system administrator can drill down the row of the component where a failure occurred to identify the cause of the failure and analyze the operations affected by the failure.

If a failure occurs, the tree displays an icon according to the failure level. For details, see Table 2-1 Failure level and corresponding icons.

Regardless of whether a failure occurs, IM management nodes that have suggestion definition information are displayed with (suggestion icon) at the left side in the tree, which indicates that suggestion definition information exists.

(Bulk Collapse/Expand icon) is displayed to the right of (suggestion icon) display position for IM management node other than the following end:

• Selected IM management node

• IM management node with mouse cursor on

Clicking the left mouse button on (Batch Collapse/Expand icon) displays the following menu.

• Collapse all Menu

  Click to collapse all of the child nodes of the node and display only the child nodes.

  If you clicked Collapse all menu for a closed node, all child nodes are also collapsed.

• Expand all Menu

  Click to expand all nodes under the corresponding node and display all nodes under them.
