2.2.5 List of Lower Managers window

The List of Lower Managers window is used to manage the secret used for communication with lower manager.

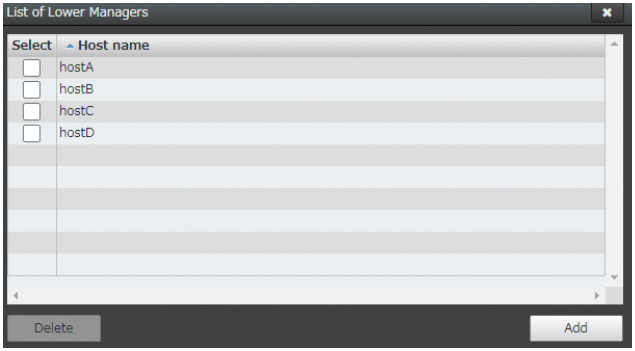

Figure 2‒13: List of Lower Managers window

List of Lower Managers

Lists lower manager. The default is ascending order of the host name. You can sort by the host name column.

Select check box

Select the row for the host name that you want to delete.

Host name

Displays the host name on which lower manager is installed.

Delete button

Click this button to display a window for confirming the deletion. Click the OK button to delete the host name selected in the Select check box.

Add button

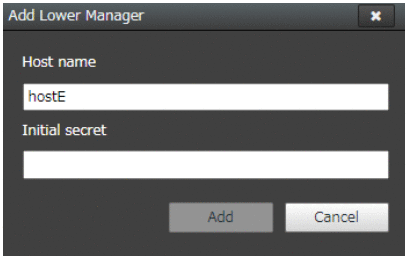

The Add Lower Manager dialog box appears.

Host name

Enter the host name of lower manager, up to 255 characters. You can enter the following characters:

Numbers (ASCII code 0x30 to 0x39), lowercase letters (0x61 to 0x7a), uppercase letters (0x41 to 0x5a), hyphens (-) (ASCII code 0x2d), periods (.) (ASCII code 0x2e)

Note that hyphen "-" and period "." cannot be used at the beginning.

Initial secret

Enter a initial secret, up to 1024 characters. Characters within ASCII code 0x20 to 0x7E can be entered. The entered characters are displayed in the asterisk of **.

Add button

Add the content you entered to lower manager info. If Host name or Initial secret is blank, this button is inactive.

Close button

Close this window.
