2.2.1 List of Integrated Agents window

The List of Integrated Agents window lists integrated agent host to be managed by Intelligent Integrated Management Base and add-on program that can be used for that host, so that the administrator knows about it.

If you need to remove integrated agent host from Intelligent Integrated Management Base managed, remove integrated agent host and add-on program associated with it.

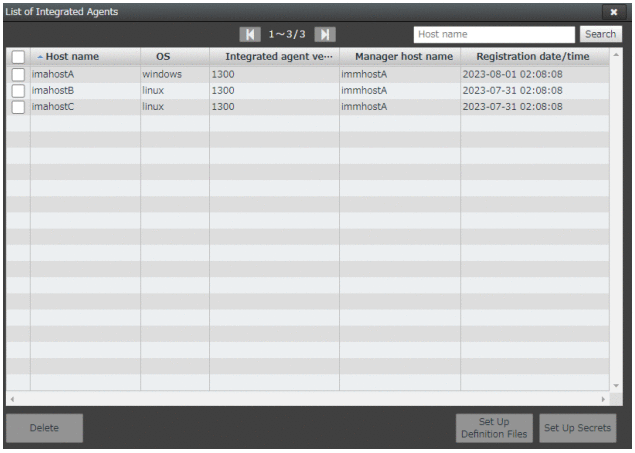

Figure 2‒2: List of Integrated Agents window

The items displayed in the List of Integrated Agents window are as follows.

Describes a criterion. A long description can be truncated and followed by an ellipsis (...). Click to view the complete description. Click to go back to the initial view.

Host name search

Enter a text string up to 255 characters to filter the Integrated agent host list by host name.

You can enter single-byte alphanumeric characters, hyphens, and single-byte periods.

Search button

The host name in integrated agent host list is searched by a partial match of the character string entered in the text area of the Host name search, and the host that matches the criteria is displayed.

button (previous page)

Displays the previous page the Integrated agent host list.

Display area

Displays the number of integrated agent that correspond to the search criteria and the displayed range of the current page in the format of x to y/z.

button (next page)

Displays one page behind the Integrated agent host list.

Integrated agent host list

Lists integrated agent host that are requested to be registered by JP1/IM agent control base of integrated agent host and stored in Intelligent Integrated Management Database.

By default, host names are displayed in ascending order.

The maximum number of items displayed per page is 200. When the number of pages exceeds 200, use the Page button to switch between pages.

If there is no single data record to be displayed, NO DATA is displayed.

Select All/Clear All check box

Select the check box in the header of the List of Unified Agent hosts to select all Unified Agent hosts on the page you are viewing. To deselect all, click to uncheck it.

If you want to select only a particular integrated agent host, select the individual check boxes.

Host name

Displays the host name of integrated agent host.

OS

Displays OS of integrated agent host.

(e.g. Windows, Linux)

Integrated agent version

Displays integrated agent version in integrated agent host.

Manager host name

Displays the host name of the manager managing integrated agent.

Registration date/time

Displays the date and time integrated agent host was registered.

The date and time are displayed in the format "YYYY-MM-DD hh:mm:ss" according to the time zone set in the Integrated Operation Viewer.

The registration date and time are updated when you start JP1/IM - Agent after the following tasks:

• Installing JP1/IM - Agent

• Upgrading JP1/IM - Agent

• Deleting JP1/IM - Agent in the List of Integrated Agents window

Set Up Definition Files button

■When there is one check in the Select check boxes of the Integrated agent host list

Clicking this button displays the List of Definition Files(host name) window for integrated agent host checked in the Integrated agent host list.

■If there is no check in the Select check boxes in the Integrated agent host list or there are more than one check box

This button is inactive.

Set Up Secrets button

■When there is one check in the Select check boxes of the Integrated agent host list

Clicking this button displays the List of Secrets dialog box for integrated agent host checked in the Integrated agent host list.

■If there is no check in the Select check boxes in the Integrated agent host list or there are more than one check box

This button is inactive.

Delete button

■When the Select check box in the Integrated agent host list is checked

When you click this button, a message window will appear asking you to confirm the deletion of the definition file. Clicking the OK button deletes the checked integrated agent host in the Integrated agent host list.

■When even one of the Select check boxes in the Integrated agent host list is not checked

This button is inactive.

Close button

Close the window.
