2.3.4 Response Action Results window

The Response Action Results window is used to check the details of response action execution results. Displayed when [Figure] [Details] button in the [Response action results list] window is clicked.

The displayed contents differ depending on the type of action.

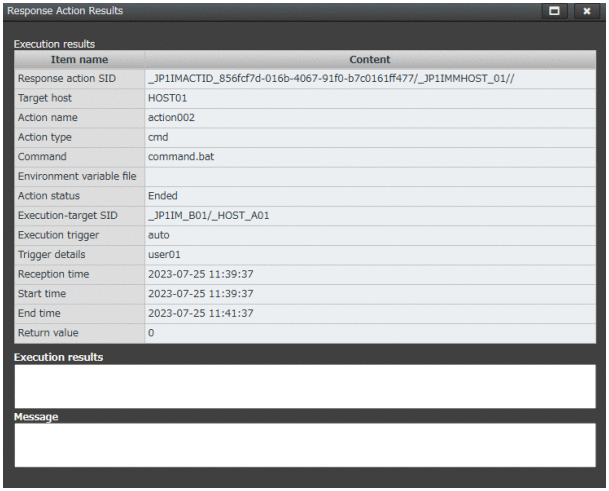

Figure 2‒21: Example of displaying the **Response Action Results** window (When the action type is cmd)

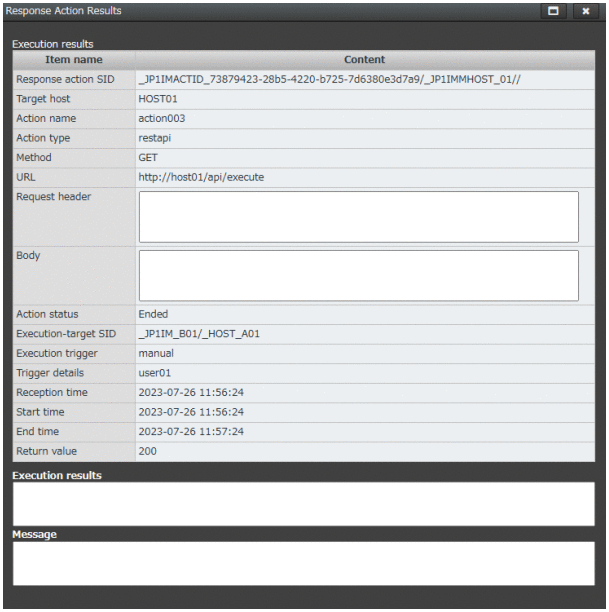

Figure 2‒22: Example of displaying the **Response Action Results** window (When the action type is restApi)

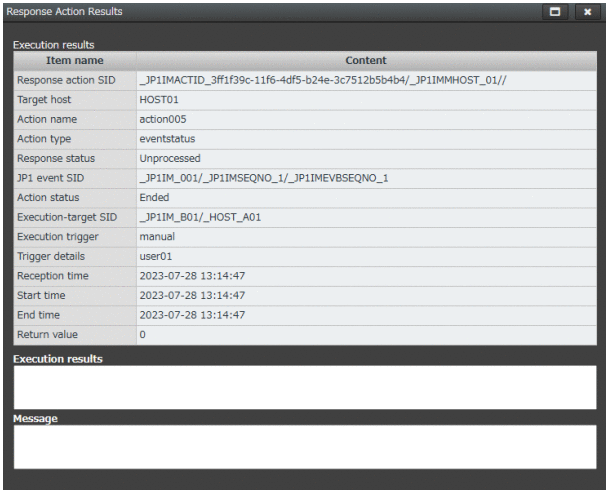

Figure 2‒23: Example of displaying the **Response Action Results** window (When the action type is eventstatus)

[Response action SID]

Displays SID of response action.

[Execution destination host name]

Displays the host name to be executed.

[Action Name]

Displays the action name.

[Action Type]

Displays the action type.

cmd
restApi
eventstatus

[Command name]

If the action type is cmd, the command-name is displayed.

[Environment variable file name]

Displays environment variable file if the action type is cmd.

[Action status]

Displays a string representing the execution state of the action.

[Execution target SID]

Displays SID to be executed.

[Trigger]

Displays the trigger event.

Auto: Auto response action
Manual: Manual response action

[Trigger event detail information]

Displays detailed information about the trigger event.

[Response action reception time]

Displays response action entry time in "YYYY-MM-DD HH:MM:SS" format.

[Response action time]

Displays response action input time in "YYYY-MM-DD HH:MM:SS" format.

[Response action finish time]

Displays response action ending time in "YYYY-MM-DD HH:MM:SS" format.

[Return value]

Displays the return value.

[Execution result]

Displays the execution result.

[Message]

Displays the message that was output when the action was executed.

[Method]

Displays the method if the action type is restApi.

[URL]

If the action type is restApi, a URL is displayed.

[Request header]

Displays the request header if the action type is restApi.

If the character string is in JSON format, it is converted to JSON character string and displayed.

[Body]

Displays the body if the action type is restApi.

If the character string is in JSON format, it is converted to JSON character string and displayed.

[Response Status]

If the action type is eventstatus, the response status is displayed.

[JP1 Events SID]

Displays SID of JP1 events if the action type is eventstatus.
