5.4.4 Checking various IT resouces

You can see the properties of the various IT resources visually.

You can choose from line charts, bar charts, numbers, gauges, and ranking formats.

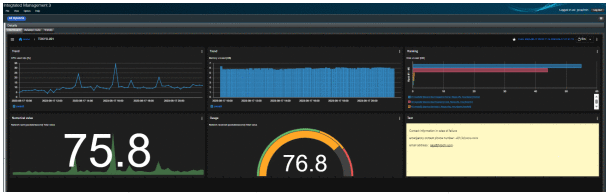

Figure 5‒10: Example of displaying various IT resources

Select the display format according to the characteristics and visibility of the data. Target metric is the number of metric and JP1 events (number of critical events) collected by JP1/IM - Agent performance monitoring, including OS performance information, external monitoring information on URL and ICMP, cloud monitoring information, and container monitoring information.

If an error is detected in IT resource, you can check the various IT resource information of the target host and check the status before and after the occurrence time.in dashboard.

In addition to the most recent situation, you can also display the past situation side by side, so you can also check whether it suddenly became abnormal or gradually approached abnormal from the previous day.

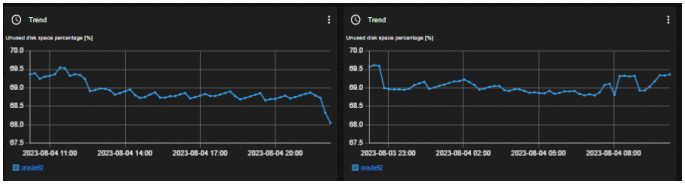

Figure 5‒11: Example of displaying a graph of the past status on the right
