5.4.2 IM management node status monitoring

In the dashboard, you can select only IM management node that you want to monitor in the tree and monitor them side by side in the dashboard.

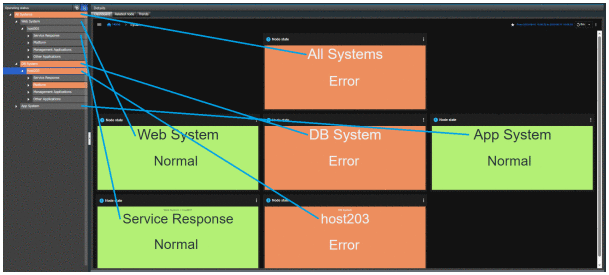

Figure 5‒6: Example of monitoring by IM node state

Organization of this subsection

(1) Monitoring with the Node Status Panel

The following shows an example of monitoring "(1) Whole system" and an example of monitoring "(2) System A" of a part of the system in the following system configurations.

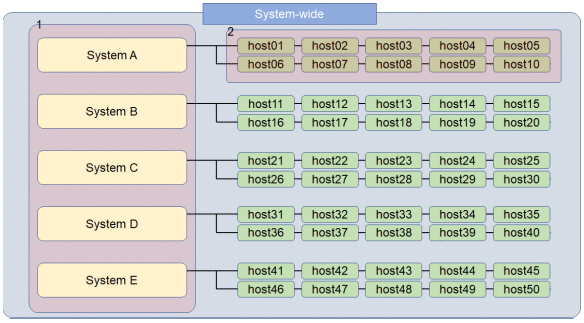

Figure 5‒7: System configuration example

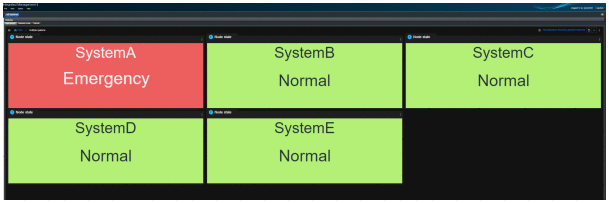

Monitor the whole system.

Specify node state monitoring per system in the dashboard, and define the panels that monitor the nodes of "System A", "System B", "System C", "System D", and "System E" to understand the overall system status.

[Figure]

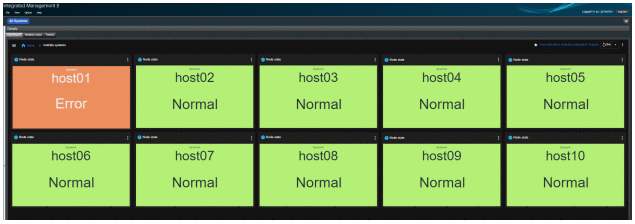

Monitor system A

You can understand the status of System A by specifying node status monitoring per host in the dashboard and defining panels that monitors nodes from "host01" to "host10".

[Figure]

To Page Top

(2) Monitoring with Node state map

With Node state map monitoring, you can specify a background image to show the status of the node on the background image. In the following example, you can see the status of a node with small green or red square status icon.

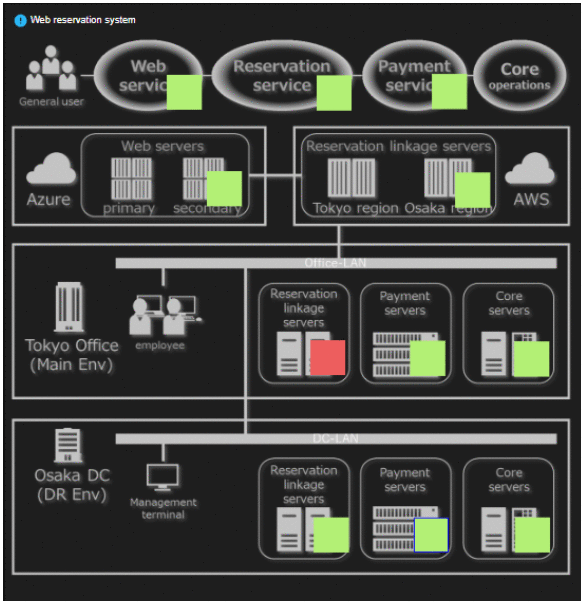

Figure 5‒8: Example of monitoring with Node state map
