4.3.1 HCSC server definition information

The following figure shows the Definition information page for the HCSC server and the items displayed on the page:

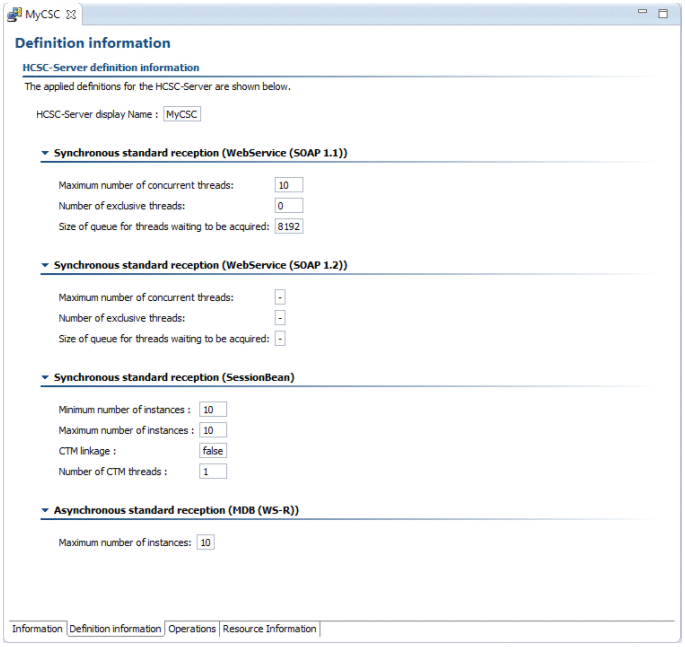

Figure 4‒6: Definition information page for an HCSC server

HCSC-Server display Name

Displays the display name for the HCSC server.

Synchronous standard reception (WebService (SOAP1.1))

Displays the following information. If the acquisition of definition information fails, acquisition error is displayed. - is displayed if this reception is not set up.

Maximum number of concurrent threads

Displays the maximum number of concurrent executions of synchronous reception (Web Services (SOAP1.1)).

Number of exclusive threads

Displays the number of occupied threads of synchronous reception (Web Services (SOAP1.1)).

Size of queue for threads waiting to be acquired

Displays the execution-waiting queue size of the synchronous reception (Web Services (SOAP1.1)).

Synchronous reception (Web Service (SOAP1.2))

Displays the following information. Displays Collection failed, if an attempt to collect the definition information fails. Displays -, if this reception is not set up.

Maximum concurrent executions

Displays maximum concurrent executions of the synchronous reception (Web Service (SOAP1.2)).

Number of dedicated threads

Displays the number of dedicated threads of the synchronous reception (Web Service (SOAP1.2)).

Pending queue size

Displays pending queue size of the synchronous reception (Web Service (SOAP1.2)).

Synchronous standard reception (SessionBean)

Displays the following information. If the acquisition of definition information fails, acquisition error is displayed. - is displayed if this reception is not set up.

Minimum number of instances

Displays the minimum number of instances of synchronous reception (SessionBean).

Maximum number of instances

Displays the maximum number of instances of synchronous reception (SessionBean).

CTM linkage

Displays whether the CTM is linked.

Number of CTM threads

Displays the number of threads provided for CTM to invoke an application.

Asynchronous standard reception (MDB (WS-R))

Displays the following information. If the acquisition of definition information fails, acquisition error is displayed. - is displayed if this reception is not set up.

Maximum number of instances

Displays the maximum number of instances of asynchronous reception (MDB (WS-R)).
