4.2.1 HCSC server basic information
In the Information page for an HCSC server, the information used for building the HCSC server is displayed. With this information, you can check the settings after the HCSC server is set up.

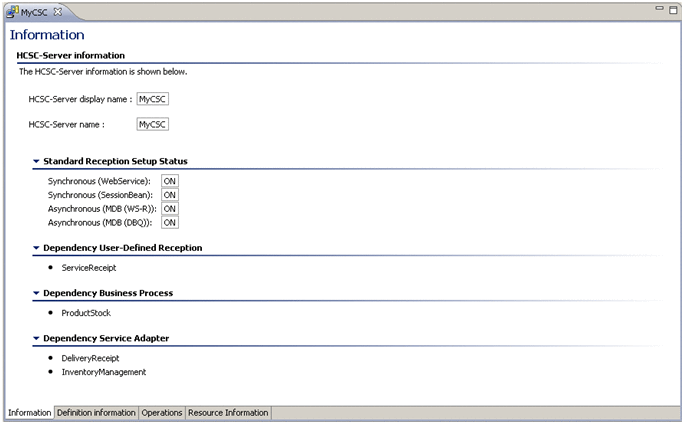

The following figure shows the Information page for the HCSC server and the items displayed on the page:
|
|
![[Figure]](GRAPHICS/ZS030200.GIF)
- HCSC-Server display name
-
Displays the display name for the HCSC server. If the display name for the HCSC server is not specified, the name for the HCSC server is displayed.
- HCSC-Server Name
-
Displays the name of the HCSC server.
- Standard Reception Setup Status
-
Displays whether the following items are set up. If items are set up, On is displayed. If items are not set up, OFF is displayed. If an attempt to acquire the basic information fails, Acquisition Failed is displayed.
-
Synchronous (Web Service (SOAP1.1))
-
Synchronous (Web Service) (SOAP1.2))
-
Synchronous (SessionBean)
-
Asynchronous (MDB (WS-R))
-
Asynchronous (MDB (DBQ))
-
- Dependency User-Defined Reception
-
Displays the name of the user-defined reception dependent on the HCSC server.
- Dependency Business Processes
-
Displays the service name of the business process dependent on the HCSC server.
- Dependency Service Adapter
-
Displays the service name of the service adapter dependent on the HCSC server.
