1.9.1 Setting dialog (Setting up WSDL custom binding file)

Use this dialog is to set up WSDL custom binding file. You can also use this dialog box to create a SOAP adapter or user-defined reception (SOAP reception) in SOAP1.1/1.2 combined mode.

For details about WSDL custom binding file that uses an external binding file, see "Appendix K Customizing WSDL using the external binding file" in "Service Platform Basic Development Guide".

The steps to display the [Setting] dialog when setting up WSDL custom binding file are as follows:

From the Eclipse menu, select [Window] - [Setting]

This displays the [Setting] dialog.
From left side of the dialog, select [HCSC-Definer] and [WSDL custom binding].

This displays the setting items for WSDL custom binding on the right side.

The following describes the setting items for WSDL custom binding.

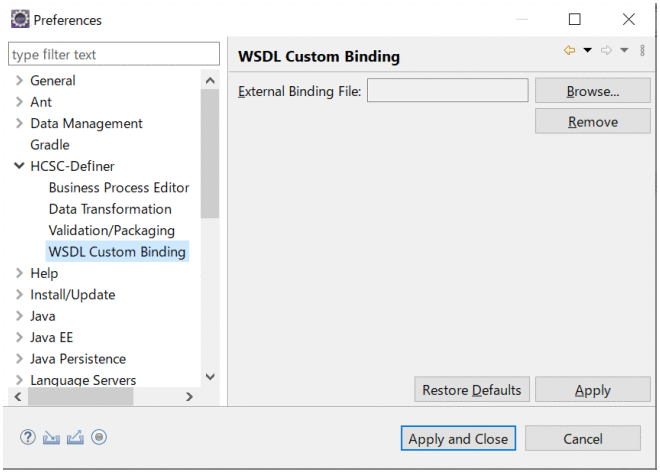

Figure 1‒151: [Setting] dialog (Setting items for WSDL custom binding)

The displayed items are as follows:

[External binding file]

Displays the absolute path of the external binding file. If you do not specify an external binding file from the [Reference] button, nothing is displayed.

[Reference] button

Displays the folder selection screen and you can then specify an external binding file.

Specify the following file used in version prior to 09-00, if an external binding file is used in version prior to 09-00 and you upgrade the version to 09-50 or higher version through update installation.

<Service platform installation directory>\CSCTE\config\tools\custom\custombinding.xml

[Remove] button

Clears the path displayed in [External binding file].

[Restore Defaults] button

Returns WSDL custom binding to default settings. Default value is as follows:

[External binding file]: Blank

[Apply] button

Commits the specified contents. Does not close the dialog.

[Apply and Close] button

Commits the specified contents and closes the dialog.

[Cancel] button

Cancels the specified contents and closes the dialog.
