1.8.3 Delete multiple services dialog

Use this dialog to select services, when you want to delete multiple services.

For details about how to delete multiple services, see 7.3.3 Deleting HCSC Components from a Cluster in the Service Platform Basic Development Guide.

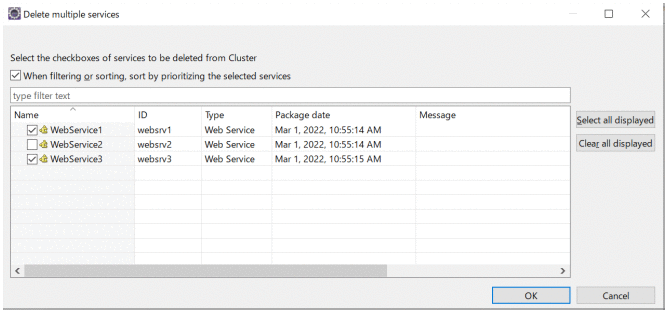

Figure 1‒150: [Delete multiple services] dialog

When filtering or sorting, sort by prioritizing the selected services check box

Select this checkbox when you want the selected services to be sorted to the top of the list. The following figure shows an example of sorting in the Name column.

[Figure]

Filter string

Input when you want to filter services with unique keywords. With this you can display only those services that contain appropriate information.

List of services

Lists service names and their information. The user-defined reception (invocation target selected) is displayed at the same level as business processes and service adapters. You can also sort rows with the column information by clicking the column header.

From the list of services, select the check boxes for the services you want to delete in the Name column. You cannot select services that have error displayed in [Message] column.

You can change the selection status as follows:

If you change the selection status of business process with a user-defined reception

The selection status of all user-defined reception that belongs to the business process whose selection status is to be changed, also changes to the same status.
If you change the selection status of user-defined reception

Business process that invokes the user-defined reception, status of which is to be replaced as well as all user-defined reception depending on invoking source business process change to the same check status.
If you change the selection status of the unselected services when multiple services are selected

Services selected other than the service for which check box is clicked, change to the same check status.

If the unselected services include 1. or 2., operation will be as per 1. or 2.

You can also change the selection status collectively with the following buttons:

[Select all the displayed services] button: Selects all the filtered services.
[Delete all the displayed services] button: Deletes the selection status of the filtered services.

[OK] button

Deletes the services and closes the dialog.

[Cancel] button

Closes the dialog without deleting services.
