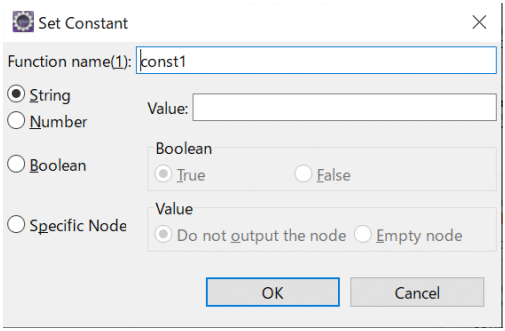

1.6.41 Set constant dialog

(1) Displayed items

[Function name]

Displays the function name. If you want to change to any name, specify within 64 characters. You can use NCName definition characters of XML schema.

[String] radio button

Select if the value to be assigned to mapping destination is a string.

[Number] radio button

Select if the value to be assigned to the mapping destination is a number.

[Value]

Specify the string or numeric to be assigned to the mapping destination. You can specify a string of up to 1,024 characters. If the String radio button is selected, you can specify an empty string by clearing this text box.

[Boolean] radio button

Select if the value to be assigned to the mapping destination is a boolean value.

[Boolean]

[True] radio button

Select if the boolean value to be assigned to the mapping destination is true.

[False] radio button

Select if the boolean value to be assigned to the mapping destination is false.

[Specific node] radio button

Select if the value to be assigned to the mapping destination is a specific node.

[Value]

[Do not output the node] radio button

Select if you do not want to output the node to the mapping destination.

[Empty node] radio button

Select if you do not want to assign a value (empty node) to the node at the mapping destination.

[OK] button

Commits the specified contents and closes the dialog.

[Cancel] button

Cancels the specified contents and closes the dialog.

To Page Top

(2) Operations that can be performed in this dialog

You can set the Set constant function in the [Set constant] dialog. For details about how to set the set constant function, see "6.5 Processing value or node in which function is used" in "Service Platform Basic Development Guide".
