1.4.25 Link Dialog
You use this dialog for defining the links among multiple sequences to be flow-processed.
This dialog opens when you perform one of the following operations:
-
Double-click a link line that links link-target activities together
-
Select and right-click a link line that links link-target activities together, and click Setting
For details about how to define links for flow processing, see the description of the flow activity in the manual Service Platform Basic Development Guide.
|
|

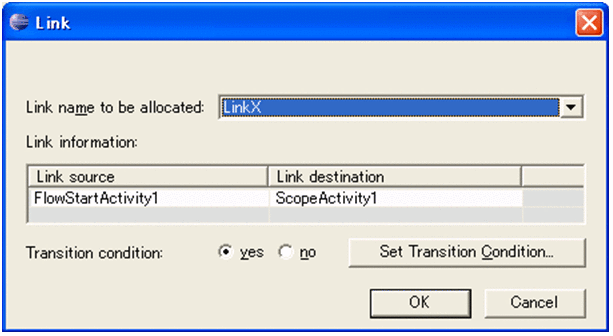

![[Figure]](GRAPHICS/ZS016200.GIF)
- Link name to be allocated
-
From the drop-down list, select the name of the link to be allocated. The drop-down list shows the link names specified within the applicable scope.
- Link source
-
Of the activities linked using link connections, the name of the activity that is used as the link source is displayed.
- Link destination
-
Of the activities linked using link connections, the name of the activity that is used as the link destination is displayed.
- Transition condition
-
Select the yes or no radio button to specify whether to define a condition for link-based transition.
- Set Transition Condition button
-
The Condition Settings dialog opens. Click this button to specify a link-based transition condition. You can specify a condition only if yes is selected in Transition condition. For details about the Condition Setting dialog, see 1.4.26 Condition Setting Dialog (Flow Activity).
- OK button
-
Saves the defined contents and closes the dialog.
- Cancel button
-
Closes the dialog without saving the defined contents.
