5.8.2 When you change the IP address or the host name of Web server of the standard reception (synchronous reception (Web service)) and the standard reception (asynchronous reception (MDB(WS-R))

Confirm the definition items of the definition file mentioned hereafter when you change the IP address or the host name of Web server of the standard reception (synchronous reception (web service)) and the standard reception (asynchronous reception (MDB(WS-R)) For details on how to define the property definition of the HCSC server configuration definition file, "6.4.2 HCSC server configuration definition file" in "Service Platform Reference Guide".

Table 5‒13: Definition items to be confirmed at the time of changing IP address and host name
Definition file name	Definition name
HCSC server configuration definition file	IP address or host name of Web Server

The methods to change the IP address and the host name differ depending on the contents defined in the definition items.

Table 5‒14: How to change IP address or host name
Definition contents of definition items	Changing method
Definition contents of definition items	Changing IP address	Changing host name
localhost	Even if you want to change either the IP address or the host name of the machine, you need not change the settings of the definition file.
Host name	To change the IP address of the machine, you can change by restarting the entire process after changing the hosts file or DNS.	To change the host name of the machine, change the definition contents of the HCSC server configuration definition file, and execute the cscsvsetup command (HCSC server setup) one more time.^#
IP address	To change the IP address of the machine, change the definition contents of the HCSC server configuration definition file, and execute the cscsvsetup command (HCSC server setup) one more time.^#	--

Legend:: --:Not applicable.
#: You execute the cscsvsetup command (HCSC server setup) when the HCSC server, service adapters, business processes, and user-defined reception are stopped.

Important note

If you export repositories from the operating environment and import these repositories to the development environment after changing IP addresses or host names, the display contents in the screens in the development environment are changed as follows:

Service adapter definition screen

IP addresses or host names displayed in the address of the service component control information.
HCSC component information display screen

Host name or IP address and, the host name or IP address of the end point URL of WSDL that is output when the [Acquire WSDL] button is clicked.

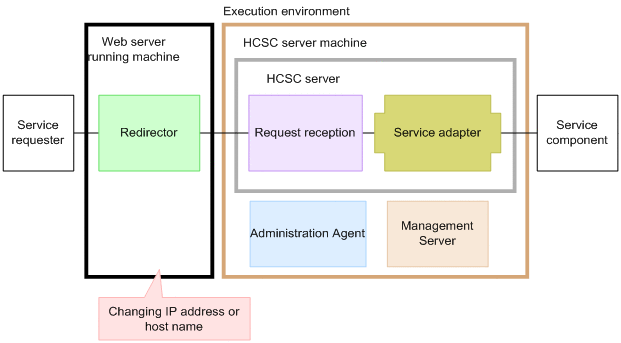

The following figure shows an example of changing the IP address or the host name of Web server of the standard reception (synchronous reception (web service)) and the standard reception (asynchronous reception (MDB(WS-R)):

Figure 5‒7: Changing the IP address or the host name of Web server of the standard reception (synchronous reception (web service)) and the standard reception (asynchronous reception (MDB(WS-R))
